CM 1-14 A-R-I-V-AQQV C1-A-A-N
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 92889445 CM CM 1-14 A-R-I-V-AQQV C1-A-A-N
Product code: 92889445
EAN Number: 5715121097352
CM 1-14 A-R-I-V-AQQV C1-A-A-N

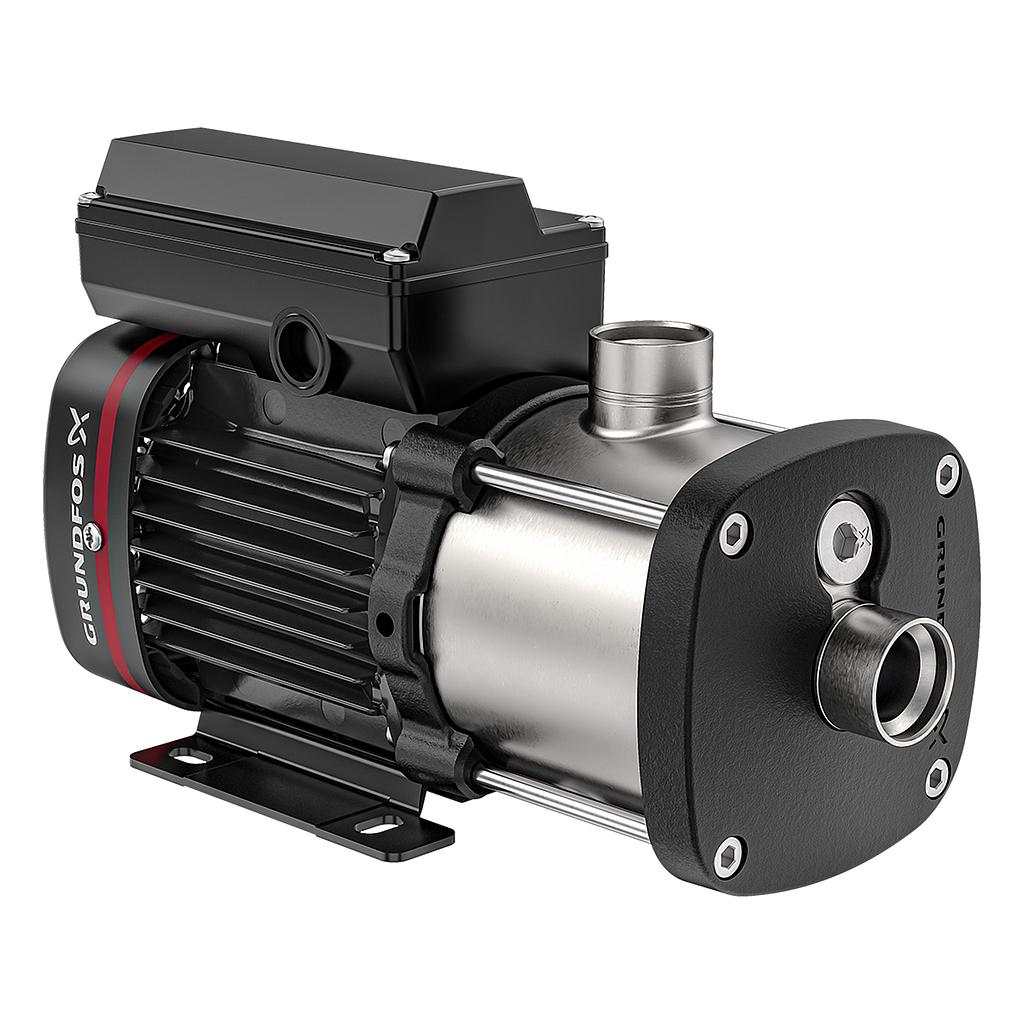

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 1-phase, foot-mounted, fan-cooled asynchronous motor.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@35369":true,"n@grundfos@fr@36926":true,"n@grundfos@global@65785":true} | |
| Product information | EAN number | 5715121097352 |
| Product No | 92889445 | |
| Flow rate | Approvals | CE,EAC,UKCA |
| Approvals for drinking water | WRAS,ACS,NSF61,UBA | |
| Code Ausführung | A | |
| Code for shaft seal | AQQV | |
| Curve tolerance | ISO9906:2012 3B | |
| Impellers | 14 | |
| Model | A | |
| Primary shaft seal | AQQV | |
| Pump speed on which pump data are based | 2900 1/min | |
| Pump version | A | |
| Rated flow | 1.7 m³/h | |
| Rated head | 88.27 m | |
| Electrical data | Cable included (Yes/No) | N |
| Enclosure class (IEC 34-5) | IP55 | |
| Ex-protection standard | PTO | |
| Frame size | 90SE | |
| IE efficiency class | IE2 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Motor standard | IEC | |
| Rated current | 8.2-7.95 A | |
| Rated power - P2 | 1.3 kW | |
| Rated speed | 2880-2890 1/min | |
| Rated voltage | 1 x 220-230 V V | |
| Service factor | 1.00 | |
| Starting current | 540-600 % | |
| Suitable for 50/60 Hz (Yes/No) | N | |
| Installation | Code Anschl. Art | R |
| Connect code | R | |
| Max pressure at stated temp | 16 bar / 90 °C | |
| Maximum operating pressure | 16 bar | |
| Outlet position | 12 | |
| PIPE_CONN_SIZE_INLET_INCH | 1 inch | |
| PIPE_CONN_SIZE_OUTLET_INCH | 1 inch | |
| Range of ambient temperature | -20 .. 55 °C | |
| Type of connection | Rp | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -20 .. 90 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | I |
| Code for rubber | V | |
| Elastomere GLRD | V | |
| IMPELLER_MATR_QLTY_EN | EN 1.4301 | |
| IMPELLER_MATR_QUALITY_ASTM | AISI 304 | |
| Impeller | Stainless steel | |
| Material code | I | |
| PH_MATR_QUALITY_ASTM | AISI 304 | |
| PH_MATR_QUALITY_EN | EN 1.4301 | |
| Pump housing | Stainless steel | |
| Control | Frequency converter | None |
| Other information | Gross weight | 29 kg |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.68 | |
| Net weight | 26.5 kg | |
| Terminal box position | 12 | |
| Zolltarif Nr. | 84137075 |
