CM 1-5 A-R-A-E-AVBE F-A-A-N
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 92817609 CM CM 1-5 A-R-A-E-AVBE F-A-A-N
Product code: 92817609
EAN Number: 5715120015944
CM 1-5 A-R-A-E-AVBE F-A-A-N

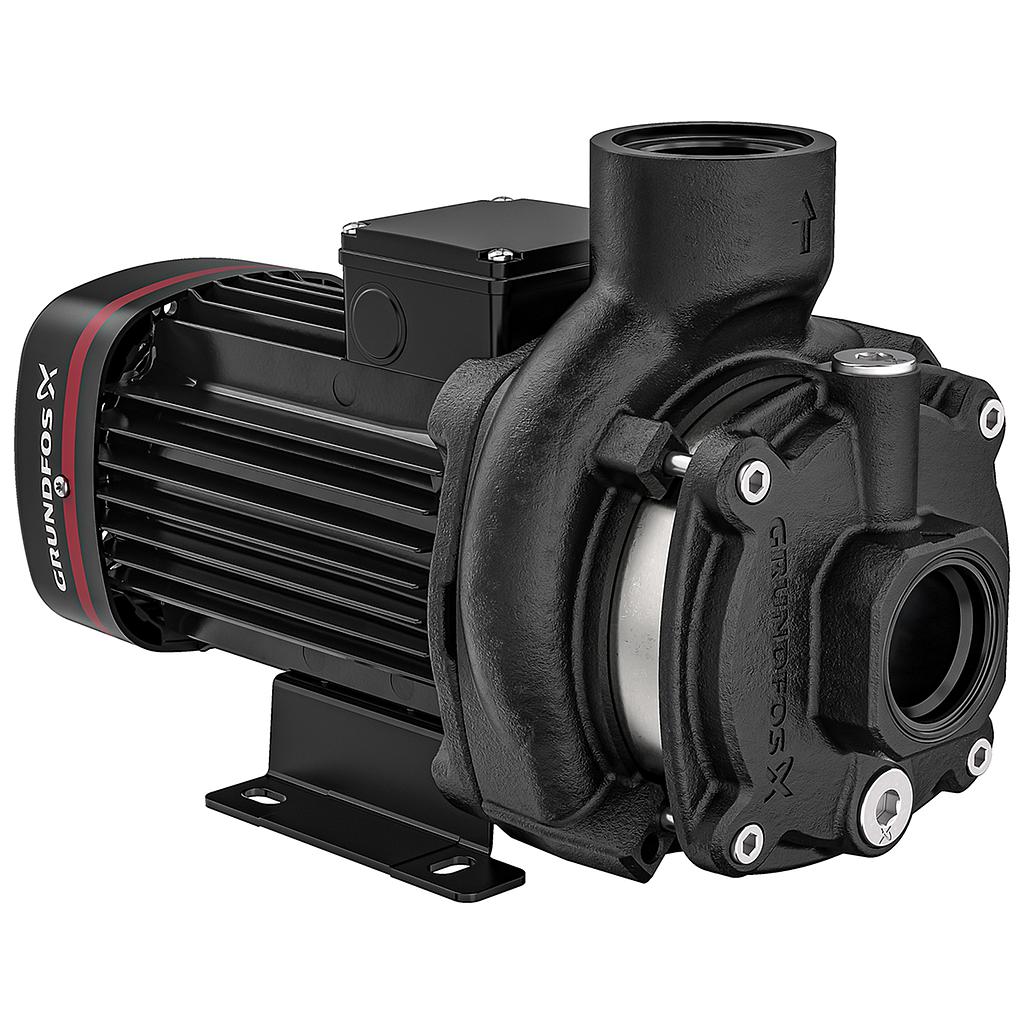

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@23201":true,"n@grundfos@fr@25245":true,"n@grundfos@global@159213":true} | |
| Product information | EAN number | 5715120015944 |
| Product No | 92817609 | |
| Flow rate | Approvals | CE,EAC,UKCA |
| Approvals for drinking water | ACS,NSF61 | |
| Code Ausführung | A | |
| Code for shaft seal | AVBE | |
| Curve tolerance | ISO9906:2012 3B | |
| Impellers | 5 | |
| Model | A | |
| Primary shaft seal | AVBE | |
| Pump speed on which pump data are based | 2900 1/min | |
| Pump version | A | |
| Rated flow | 1.7 m³/h | |
| Rated head | 30.92 m | |
| Electrical data | Cable included (Yes/No) | N |
| Enclosure class (IEC 34-5) | IP55 | |
| Ex-protection standard | NONE | |
| Frame size | 71B | |
| IE efficiency class | IE3 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Motor standard | IEC | |
| Rated current | 2,0-2,1/1,15-1,2 A | |
| Rated power - P2 | 0.46 kW | |
| Rated speed | 2850-2880 1/min | |
| Rated voltage | 3 x 220-240D/380-415Y V | |
| Service factor | 1.00 | |
| Starting current | 660-700 % | |
| Suitable for 50/60 Hz (Yes/No) | N | |
| Installation | COMB_MAX_PRESS_LOW_TEMP | 6 bar / 90 °C |
| Code Anschl. Art | R | |
| Connect code | R | |
| Max pressure at stated temp | 10 bar / 40 °C | |
| Maximum operating pressure | 10 bar | |
| Outlet position | 12 | |
| PIPE_CONN_SIZE_INLET_INCH | 1 inch | |
| PIPE_CONN_SIZE_OUTLET_INCH | 1 inch | |
| Range of ambient temperature | -20 .. 55 °C | |
| Type of connection | Rp | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -20 .. 90 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | A |
| Code for rubber | E | |
| Elastomere GLRD | E | |
| IMPELLER_MATR_QLTY_EN | EN 1.4301 | |
| IMPELLER_MATR_QUALITY_ASTM | AISI 304 | |
| Impeller | Stainless steel | |
| Material code | A | |
| PH_MATR_QUALITY_ASTM | ASTM A48-25A | |
| PH_MATR_QUALITY_EN | EN-GJL-200 | |
| Pump housing | Cast iron | |
| Control | Frequency converter | None |
| Other information | Gross weight | 14.9 kg |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.7 | |
| Net weight | 12.4 kg | |
| Terminal box position | 12 | |
| Zolltarif Nr. | 84137075 |
