Grundfos 97516577 CM CM 10-1 A-R-A-E-AQQE F-A-A-N
Product code: 97516577
EAN Number: 5700317301887
CM 10-1 A-R-A-E-AQQE F-A-A-N

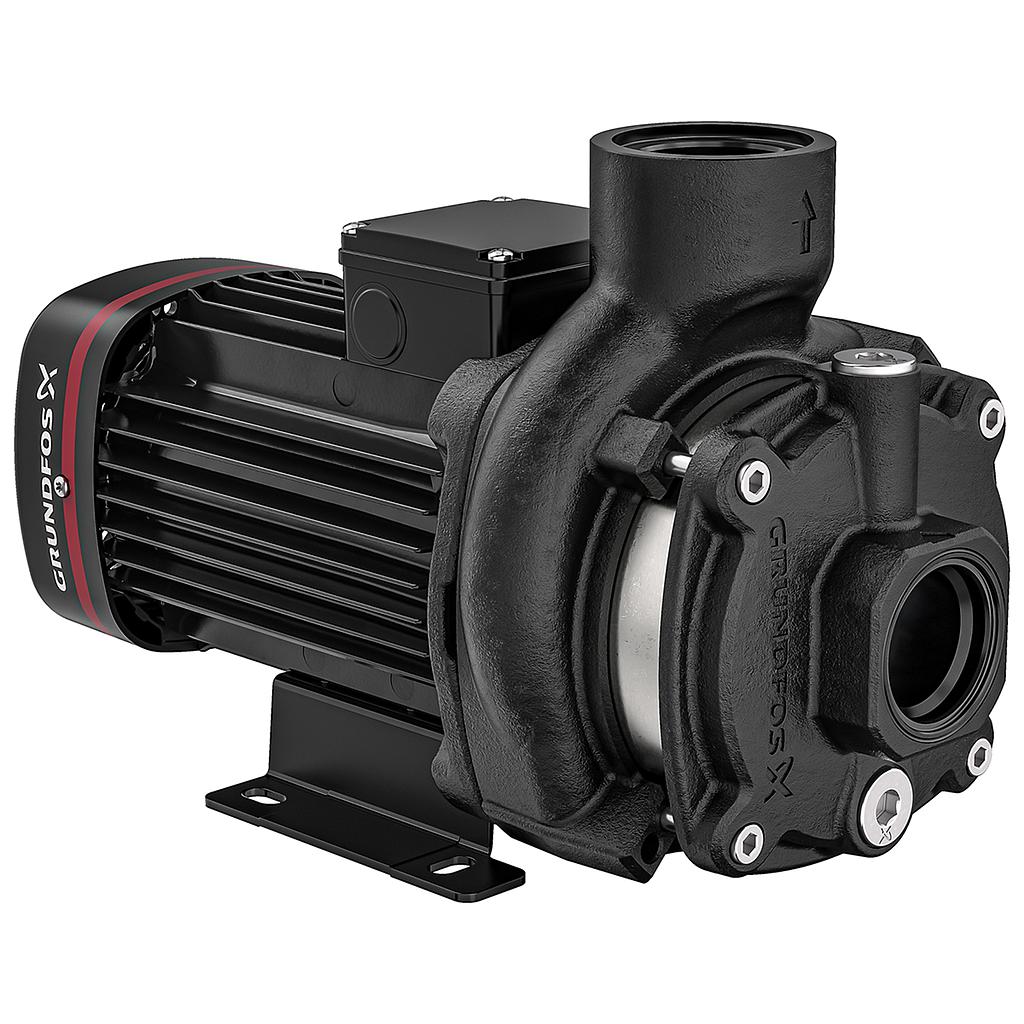

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.
| Links to notes in other regional sites (our database) | {"n@grundfos@global@117497":true} | |
| Product information | EAN number | 5700317301887 |
| Product No | 97516577 | |
| Flow rate | Approvals | CE,EAC,UKCA |
| Approvals for drinking water | WRAS,ACS,NSF61 | |
| Code Ausführung | A | |
| Code for shaft seal | AQQE | |
| Curve tolerance | ISO9906:2012 3B | |
| Impellers | 1 | |
| Model | A | |
| Primary shaft seal | AQQE | |
| Pump speed on which pump data are based | 2900 1/min | |
| Pump version | A | |
| Rated flow | 10 m³/h | |
| Rated head | 13.67 m | |
| Electrical data | Cable included (Yes/No) | N |
| Enclosure class (IEC 34-5) | IP55 | |
| Ex-protection standard | NONE | |
| Frame size | 71B | |
| IE efficiency class | IE2 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Motor standard | IEC | |
| Rated current | 2,8-3,1/1,6-1,8 A | |
| Rated power - P2 | 0.6 kW | |
| Rated speed | 2810-2850 1/min | |
| Rated voltage | 3 x 220-240D/380-415Y V | |
| Service factor | 1.00 | |
| Starting current | 580-500 % | |
| Suitable for 50/60 Hz (Yes/No) | N | |
| Installation | Code Anschl. Art | R |
| Connect code | R | |
| Max pressure at stated temp | 10 bar / 90 °C | |
| Maximum operating pressure | 10 bar | |
| Outlet position | 12 | |
| PIPE_CONN_SIZE_INLET_INCH | 1 1/2 inch | |
| PIPE_CONN_SIZE_OUTLET_INCH | 1 1/2 inch | |
| Range of ambient temperature | -20 .. 55 °C | |
| Type of connection | Rp | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -20 .. 90 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | A |
| Code for rubber | E | |
| Elastomere GLRD | E | |
| IMPELLER_MATR_QLTY_EN | EN 1.4301 | |
| IMPELLER_MATR_QUALITY_ASTM | AISI 304 | |
| Impeller | Stainless steel | |
| Material code | A | |
| PH_MATR_QUALITY_ASTM | ASTM A48-25A | |
| PH_MATR_QUALITY_EN | EN-GJL-200 | |
| Pump housing | Cast iron | |
| Control | Frequency converter | None |
| Other information | Danish VVS No. | 385212101 |
| Finnish LVI No. | 4925753 | |
| Gross weight | 23.4 kg | |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.7 | |
| Net weight | 20.9 kg | |
| Terminal box position | 12 | |
| Zolltarif Nr. | 84137075 |
