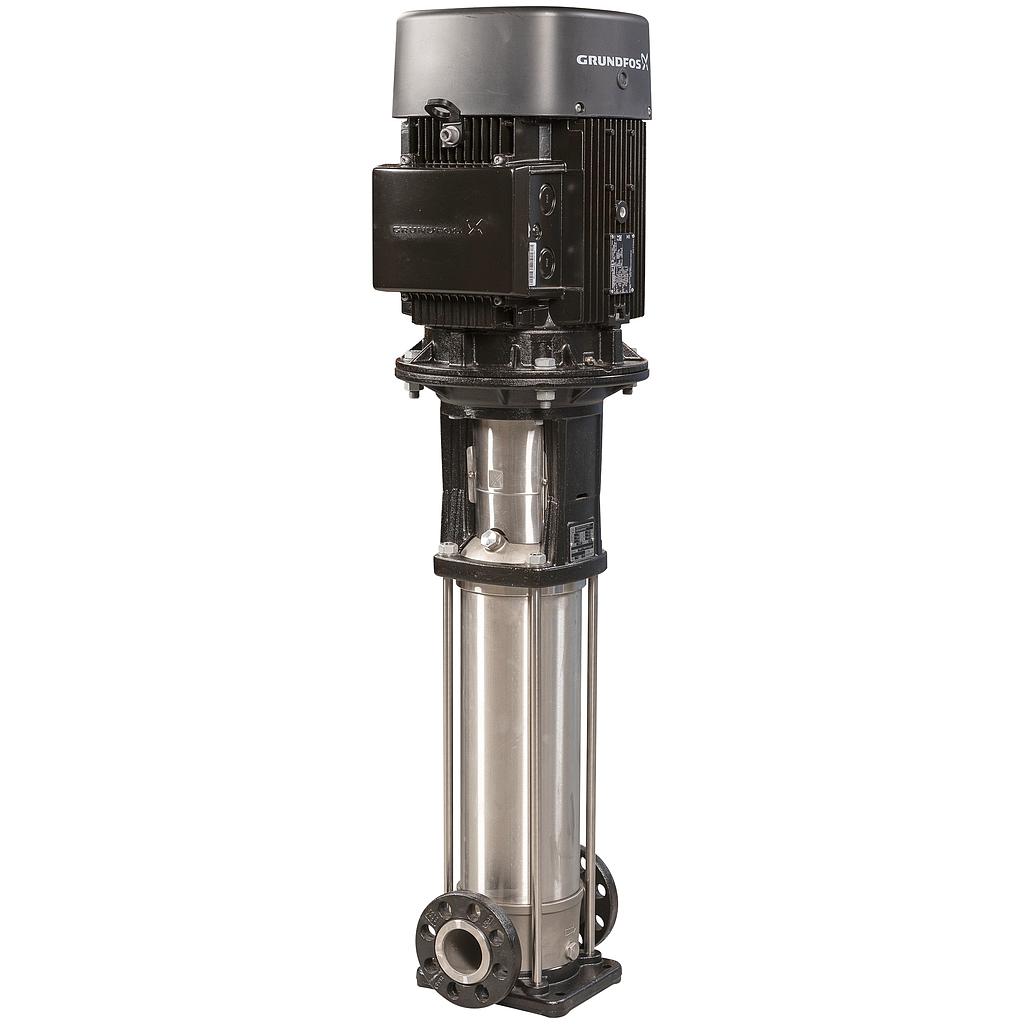

CRI 5-14 A-FGJ-A-V-HQQV
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 93396327 CRI CRI 5-14 A-FGJ-A-V-HQQV
Product code: 93396327
EAN Number: 5715472010598
CRI 5-14 A-FGJ-A-V-HQQV
Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
| Links to notes in other regional sites (our database) | {"n@grundfos@global@145385":true} | |
| Product information | EAN number | 5715472010598 |
| Product No | 93396327 | |
| Flow rate | Approvals | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water | WRAS | |
| Code Ausführung | A | |
| Code for shaft seal | HQQV | |
| Curve tolerance | ISO9906:2012 3B | |
| Impellers | 14 | |
| Low NPSH | N | |
| Maximum head | 95.1 m | |
| Model | A | |
| Number of reduced-diameter impellers | 0 | |
| Primary shaft seal | HQQV | |
| Pump orientation | Vertical | |
| Pump speed on which pump data are based | 2899 1/min | |
| Pump version | A | |
| Rated flow | 5.8 m³/h | |
| Rated head | 71.1 m | |
| Shaft seal arrangement | Single | |
| Stages | 14 | |
| Electrical data | Built-in motor protection | NONE |
| Cos phi - power factor | 0.85-0.82 | |
| Enclosure class (IEC 34-5) | 55 Dust/Jetting | |
| IE Efficiency class | IE4 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Motor No | 93072821 | |
| Motor efficiency at 1/2 load | 89.4-89.1 % | |
| Motor efficiency at 3/4 load | 89.7-90.0 % | |
| Motor efficiency at full load | 88.0 % | |
| Motor standard | IEC | |
| Motor type | 90LG | |
| Number of poles | 2 | |
| Power (P2) required by pump | 2.2 kW | |
| Rated current | 4.55/2.60 A | |
| Rated power - P2 | 2.2 kW | |
| Rated speed | 2920-2930 1/min | |
| Rated voltage | 3 x 380-400D/660-690Y V | |
| Starting current | 970-1020 % | |
| Installation | COMB_MAX_PRESS_LOW_TEMP | 25 bar / -20 °C |
| Code Anschl. Art | FGJ | |
| Connect code | FGJ | |
| Flange rating inlet | 300 lb | |
| Flange size for motor | FT115 | |
| Max pressure at stated temp | 25 bar / 90 °C | |
| Maximum ambient temperature | 60 °C | |
| Maximum operating pressure | 25 bar | |
| PIPE_CONN_SIZE_INLET_INCH | 1 1/4 inch | |
| PIPE_CONN_SIZE_OUTLET_INCH | 1 1/4 inch | |
| Pressure rating for connection | PN 25 | |
| Size of inlet connection | DN 25/32 | |
| Size of outlet connection | DN 25/32 | |
| Type of connection | DIN / ANSI / JIS | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -20 .. 90 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | BASE_MATR_QLTY_ASTM | AISI 316 |
| BASE_MATR_QLTY_EN | EN 1.4408 | |
| Base | Stainless steel | |
| Bearing | SIC | |
| Code Material | A | |
| Code for rubber | V | |
| Elastomere GLRD | V | |
| IMPELLER_MATR_QLTY_EN | EN 1.4301 | |
| IMPELLER_MATR_QUALITY_ASTM | AISI 304 | |
| Impeller | Stainless steel | |
| Material code | A | |
| Control | Frequency converter | None |
| Other information | Gross weight | 46.6 kg |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.57 | |
| Net weight | 43.7 kg | |
| Shipping volume | 0.13 m³ | |
| Terminal box position | 6 | |
| Zolltarif Nr. | 84137075 |
