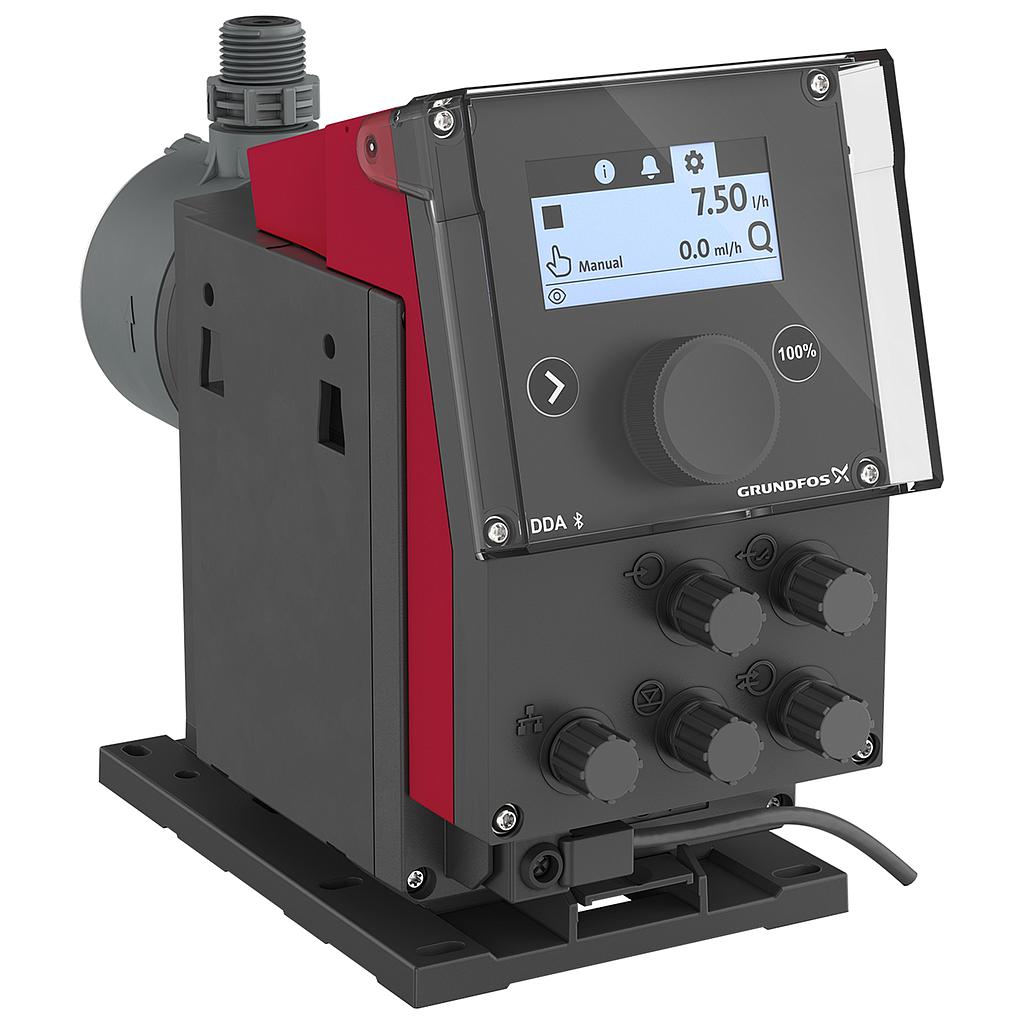

Grundfos v.1 23.10 DDA DDA 30-4 FCM-C-PP/V/C-F-31I002FG 93017015

The SMART Digital DDA-C is a compact positive-displacement diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. Depending on the set capacity, the duration of the discharge stroke varies, ensuring an optimal, uniform and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be easily turned to the front, left or right position. The click wheel and the multi-coloured backlit graphic plain-text LC display enable intuitive commissioning and operation. The control elements are protected by a transparent cover. The DDA-C has built-in connectivity that allows easy setup and tracking via the Grundfos GO app as well as easy integration into a Modbus RTU or TCP bus system. The sensor-based FlowControlMeasurement (FCM) system detects malfunctions such as air bubbles, line breaks or overpressure directly in the dosing head and displays them in plain text in the alarm menu. FCM measures the actual pressure and flow rate and eliminates the need for additional monitoring and control devices (accuracy of ± 1.5 % of the set value in a trouble-free process). The measured pressure and flow are displayed and can be integrated into the process control system, e.g. SCADA. In addition, the AutoFlowAdapt function automatically adjusts the pump speed to the process conditions to maintain the target flow even with fluctuating back pressure or air bubble formation (degassing drive strategy). The dosing head includes the following parts:

Operation modes and functions:

Other features:

Signal inputs/outputs:
