  3. Grundfos v.1 23.10 DDA DDA 7.5-16 AR-C-PV/T/C-F-32I001FG 93242613
Public Pricelist

Grundfos v.1 23.10 DDA DDA 7.5-16 AR-C-PV/T/C-F-32I001FG 93242613

    1,976.26 € 1,976.26 € 1976.26 EUR

    1,976.26 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos 93242613 DDA DDA 7.5-16 AR-C-PV/T/C-F-32I001FG

    Product code: 93242613

    EAN Number: 5715469760208

    DDA 7.5-16 AR-C-PV/T/C-F-32I001FG

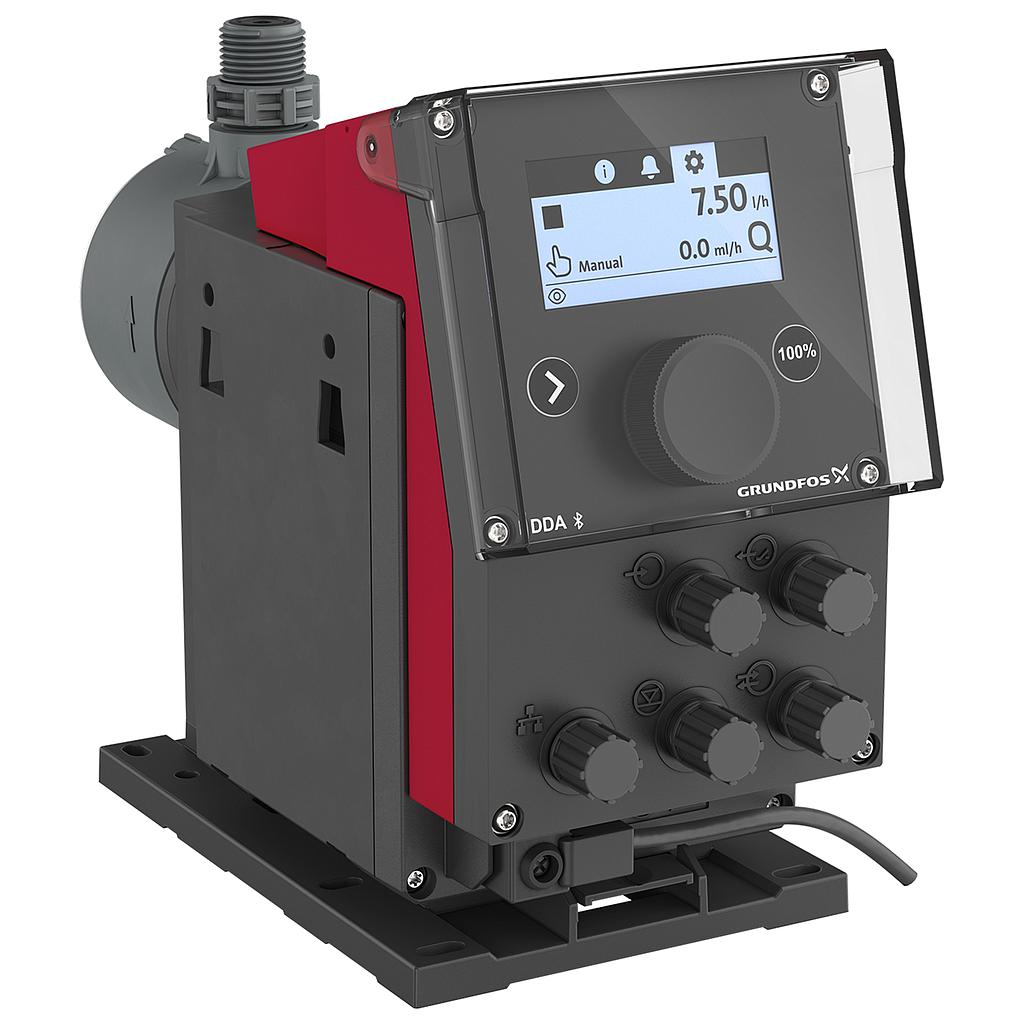

    The SMART Digital DDA-C is a compact positive-displacement diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. Depending on the set capacity, the duration of the discharge stroke varies, ensuring an optimal, uniform and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be easily turned to the front, left or right position. The click wheel and the multi-coloured backlit graphic plain-text LC display enable intuitive commissioning and operation. The control elements are protected by a transparent cover. The DDA-C has built-in connectivity that allows easy setup and tracking via the Grundfos GO app as well as easy integration into a Modbus RTU or TCP bus system. The dosing head includes the following parts:

    • A durable and chemically resistant full PTFE diaphragm,
    • Double ball valves for maximum dosing accuracy,
    • A deaeration valve for easy start-up.

    Operation modes and functions:

    • Manual dosing in ml/h, I/h or gph.
    • Pulse control in ml/pulse (incl. memory function).
    • Analog control, 0/4-20 mA (scalable).
    • Pulse-based batch function in ml, l or gal.
    • Timer-based batch function (dosing timer cycle or week).
    • Fieldbus control (integrated Modbus RTU and TCP; Profibus DP, Profinet and Ethernet IP via CIM/CIU models).
    • Cloud control and monitoring (Smart Digital Chempairing Suite; Grundfos Connect).

    Other features:

    • Auto deaeration during pump standby to avoid stand-still due to air-locking.
    • Two SlowMode steps (anti-cavitation), 50 % and 25 % maximum flow, e.g. for high-viscosity or degassing liquids.
    • Max. Capacity to limit the capacity of the pump to a set maximum.
    • Service information display to show when service and which wear-part order numbers are required.
    • Two-step key lock function to protect the pump against unauthorised access.
    • Multi-parameter dashboard function to provide further information on up to 4 parameters.
    • Counter for total dosed volume (resettable), operating hours, etc.
    • Save, copy and load customised settings as well as reload factory settings.

    Signal inputs/outputs:

    Links to notes in other regional sites (our database) {"n@grundfos@es@32535":true,"n@grundfos@fr@23434":true,"n@grundfos@global@136664":true}
    Produkt Informationen EAN-Nummer 5715469760208
    Produktnummer 93242613
    Förderleistung Wiederholgenauigkeit 1 %
    Zulassungen CE,CSA-US,NSF61,RCM
    Max. Volumenstrom 7.5 l/h
    Max. Q bei 25% (slow mode) 1.88 l/h
    Max. Q bei 50% (slow mode) 3.75 l/h
    Max. Viskosität bei 100% 600 mPas
    Max. Viskosität bei 25% (slow mode) 2500 mPas
    Max. Viskosität bei 50% (slow mode) 1800 mPas
    Min. Volumenstrom 2.5 ml/h
    Einstellbereich 1:3000
    Typenschlüssel DDA 7.5-16 AR-C-PV/T/C-F-32I00
    Ventiltyp Federbelastet (HV-Version)
    Elektrische Daten Schutzart (gemäß IEC 34-5) IP65 / TYPE 4X
    Einschaltstrom 25A bei 230V, für 2 ms
    Kabellänge 1.5 m
    Netzfrequenz 50 / 60 Hz
    Maximale Leistungsaufnahme P1 24 W
    Bemessungsspannung 1 x 100-240 V
    Art des Kabelsteckers EU
    Installation Inhalt des Installationsset > siehe Datenheft Ja
    Installationsart 4/6 mm bis zu 7,5 l/h,16 bar
    Max. Saughöhe (Betrieb) 6 m
    Max. Saughöhe (Ansaugphase) 2 m
    Maximale Umgebungstemperatur 0 .. 45 °C
    Max. Betriebsdruck 16 bar
    Anschluss Saugstutzen Hose 4/6 mm 3
    Anschluss Druckstutzen Hose 4/6 mm 3
    Fördermedium Dichte 998.2 kg/m³
    Medientemperaturbereich 0 .. 45 °C
    Medientemp. bei Datenerfassung 20 °C
    Werkstoffe Material Dosierkopf PVDF (Polyvinylidenfluorid)
    Dichtung PTFE
    Ventilkugel Keramik
    Steuerung Analogeingang 0/4-20 mA
    Analogausgang 0/4-20 mA
    Buskommunikation Ja
    Bedienfeld Vorne
    Steuerungsvariante AR-C
    Ext. Stopp Ja
    Niveaukontrolle YES
    Ausgangsrelais 2
    Kontaktansteuerung ja
    Sonstiges Information Farbe rot
    Bruttogewicht 3 kg
    Herkunftsland FR
    Nettogewicht 3 kg
    Zolltarif Nr. 84135040
