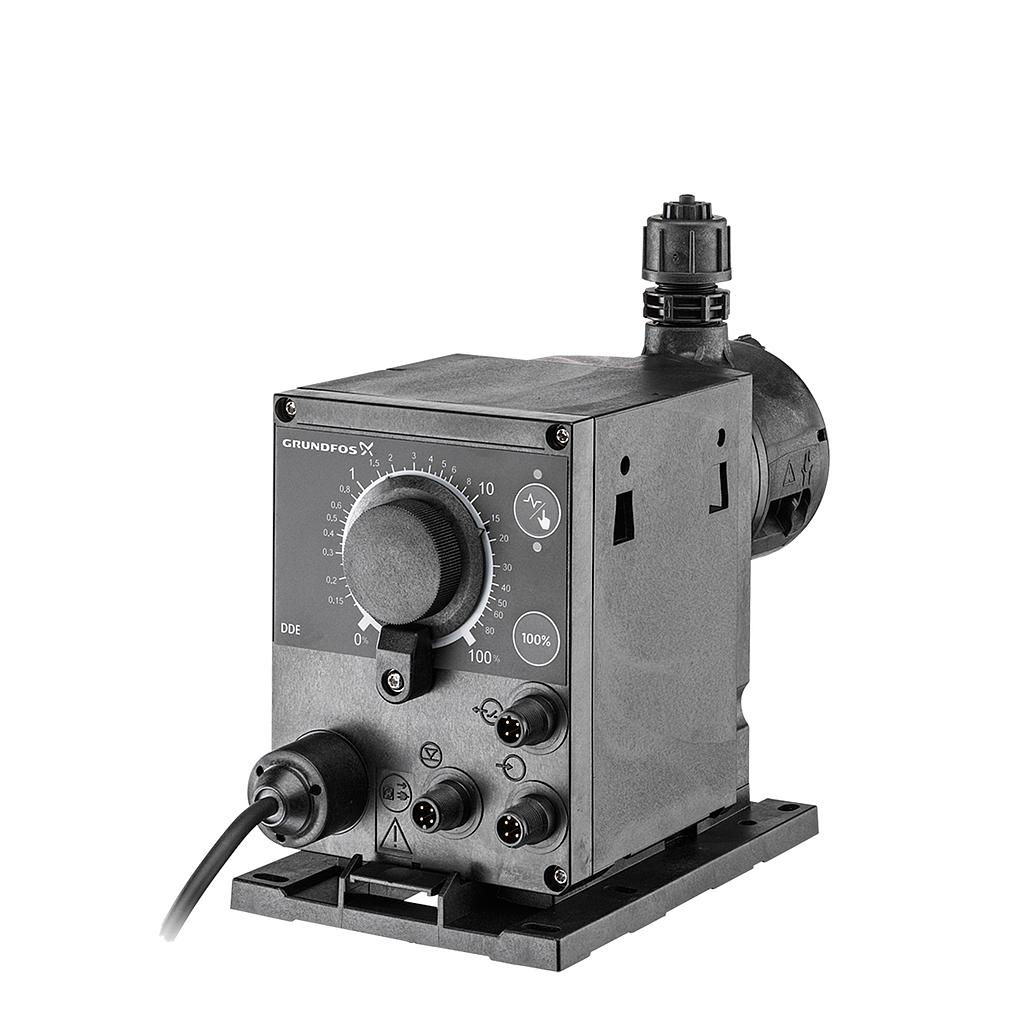

    Grundfos 97720957 DDE DDE 6-10 P-PVC/E/C-X-31U2U2FG

    Product code: 97720957

    EAN Number: 5710622710779

    DDE 6-10 P-PVC/E/C-X-31U2U2FG

    The SMART Digital DDE is a compact positive displacement, diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The dosing flow can be adjusted by means of an adjustment knob on a logarithmical scale from 0.1-100%.

    The dosing head is composed of:

    • Long lifetime and universal chemical resistant Full-PTFE diaphragm.
    • Double ball valves for highest dosing accuracy.
    • Deaeration valve for easy start-up.

    Operation modes:

    • Manual dosing from 0.1 to 100%.
    • Pulse control (divisor function included).
    Other features:
    • 100 % key (max. capacity), e.g. for deaearation.
    • Operation mode switch key between manual and pulse.
    • Status LEDs for pulse and manual.
    • Mechanical lock to protect the pump against unauthorised access.

    Signal- Inputs/outputs:

    • Input for pulse, external stop.
    • Input for empty tank signal.

    Links to notes in other regional sites (our database) {"n@grundfos@es@15220":true,"n@grundfos@fr@29073":true,"n@grundfos@global@136665":true}
    Product information EAN number 5710622710779
    Product No 97720957
    Flow rate Accuracy of repeatability 5 %
    Approvals CE,CSA-US,NSF61,EAC,RCM
    Max. Flow 6 l/h
    Maximum viscosity at 100 % 50 mPas
    Maximum viscosity in slow mode 25 % N/A mPas
    Maximum viscosity in slow mode 50 % N/A mPas
    Min flow 6.0 ml/h
    Model A
    Turn-down ratio 1:1000
    Valve type Standard
    Electrical data Enclosure class (IEC 34-5) IP65 / TYPE 4X
    Inrush current 25A at 230V for 2ms
    Length of cable 1.5 m
    Mains frequency 50 / 60 Hz
    Power input P1 19 W
    Power plug Schuko plug
    Rated voltage 1 x 100-240 V
    Installation Installation set (Yes/No) No
    Installation type No installation set
    Max. Suction lift during operation 6 m
    Max. Suction lift during priming 2 m
    Maximum operating pressure 10 bar
    Range of ambient temperature 0 .. 45 °C
    Size of inlet connection 4/6, 6/9, 6/12, 9/12
    Size of outlet connection 4/6, 6/9, 6/12, 9/12
    Type of inlet connection Hose
    Type of outlet connection Hose
    Fluid Density 998.2 kg/m³
    Liquid temperature range 0 .. 45 °C
    Selected liquid temperature 20 °C
    Materials Dosing head PVC (Polyvinyl chloride)
    Gasket EPDM
    VLV_BALL_MAT_QLT_OTH Al2O3
    Valve ball Ceramic
    Control Control variant P
    Ext. Stop input yes
    Level control YES
    Output relays No
    Pulse control Y
    Other information Gross weight 2.66 kg
    Herkunftsland
    Net weight 2.06 kg
    Zolltarif Nr. 84135040
