    Grundfos 97989186 MTA MTA 60-130 A-W-A-T

    Product code: 97989186

    EAN Number: 5710627480592

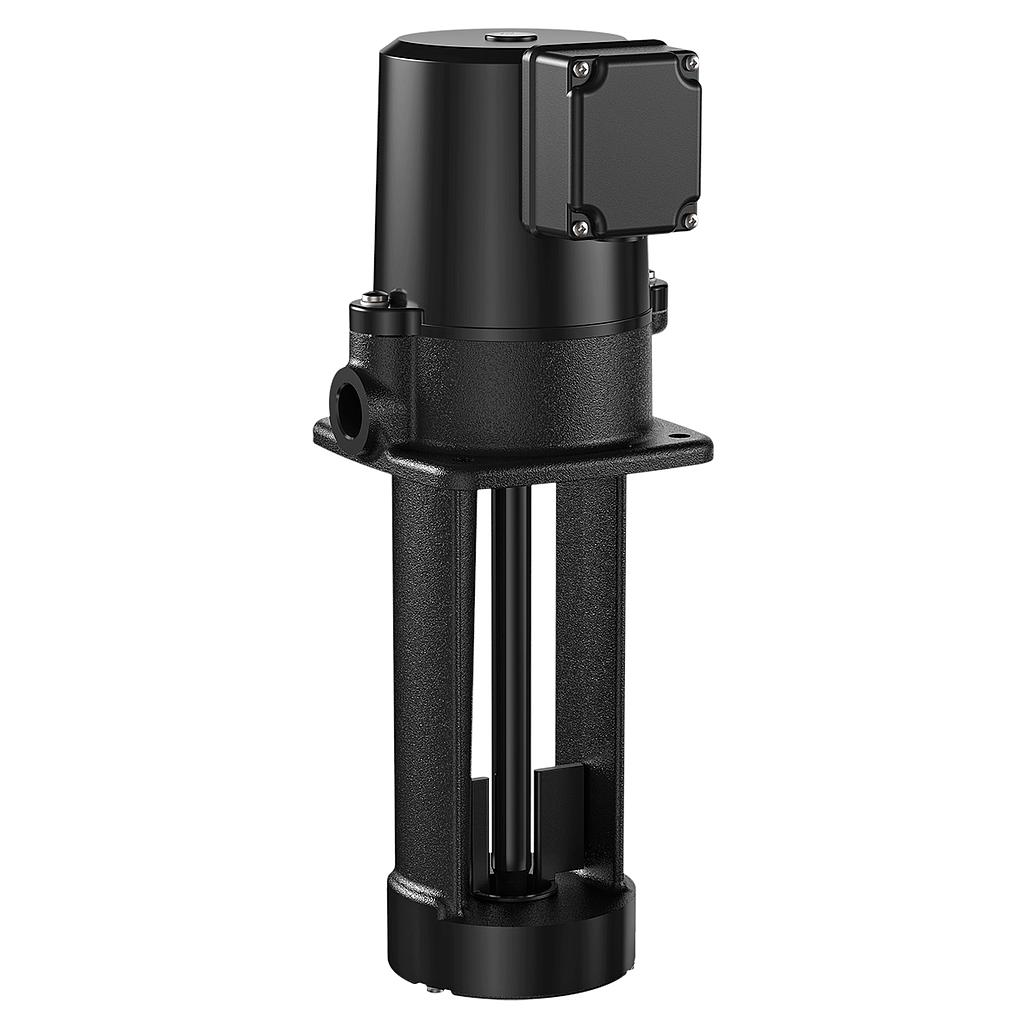

    MTA 60-130 A-W-A-T

    Low pressure immersible centrifugal pump for installation, in filtering systems or conveyer systems in the machine tool industry.

    The pump has the following characteristics:

    • The pump is closed-coupled without shaft seal.
    • The pump is fitted with a 3-phase integrated motor.
    • Open impeller allows particles to pass through pump
    • Impeller is made of PAA GF50.
    • Motor stool and pump housing are made of cast iron.
    • The pump has no wearing parts.

    Links to notes in other regional sites (our database) {"n@grundfos@es@12277":true,"n@grundfos@fr@47957":true,"n@grundfos@global@75845":true}
    Product information EAN number 5710627480592
    Product No 97989186
    Flow rate Approvals CE
    Cable entry 22
    Code Ausführung A
    Max. Particle 5 mm
    Maximum head 7.4 m
    Model A
    Pump version A
    Rated flow 50 l/min
    Rated head 5.3 m
    Electrical data Enclosure class (IEC 34-5) IP54
    Ex-protection standard N
    Insulation class (IEC 85) F
    Mains frequency 50 Hz
    Motor efficiency at full load 78.1 %
    Power input P1 200 W
    Rated current 0.69/0.42 A
    Rated speed 2932 1/min
    Rated voltage 3 x 220-240D/380-415Y V
    Service factor 1.15
    Installation Code Anschl. Art W
    Connect code W
    Pump outlet G 3/4
    Range of ambient temperature 40 °C
    Fluid Density 998.2 kg/m³
    Liquid temperature range 0 .. 60 °C
    Selected liquid temperature 20 °C
    Materials Code Material A
    Impeller PAA GF50
    Material code A
    PH_MATR_QUALITY_ASTM ASTM A48-25B
    PH_MATR_QUALITY_EN EN 1561 EN-GJL-200
    Pump housing Cast iron
    Control Frequency converter Not prepared for VFD
    Other information Gross weight 11.6 kg
    Herkunftsland
    Net weight 10.6 kg
    Shipping volume 0.017 m³
    Terminal box position 9
    Zolltarif Nr. 84137051
