MTH 8-5/2 A-W-A-AQQV
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 98891555 MTH MTH 8-5/2 A-W-A-AQQV
Product code: 98891555
EAN Number: 5712603046822

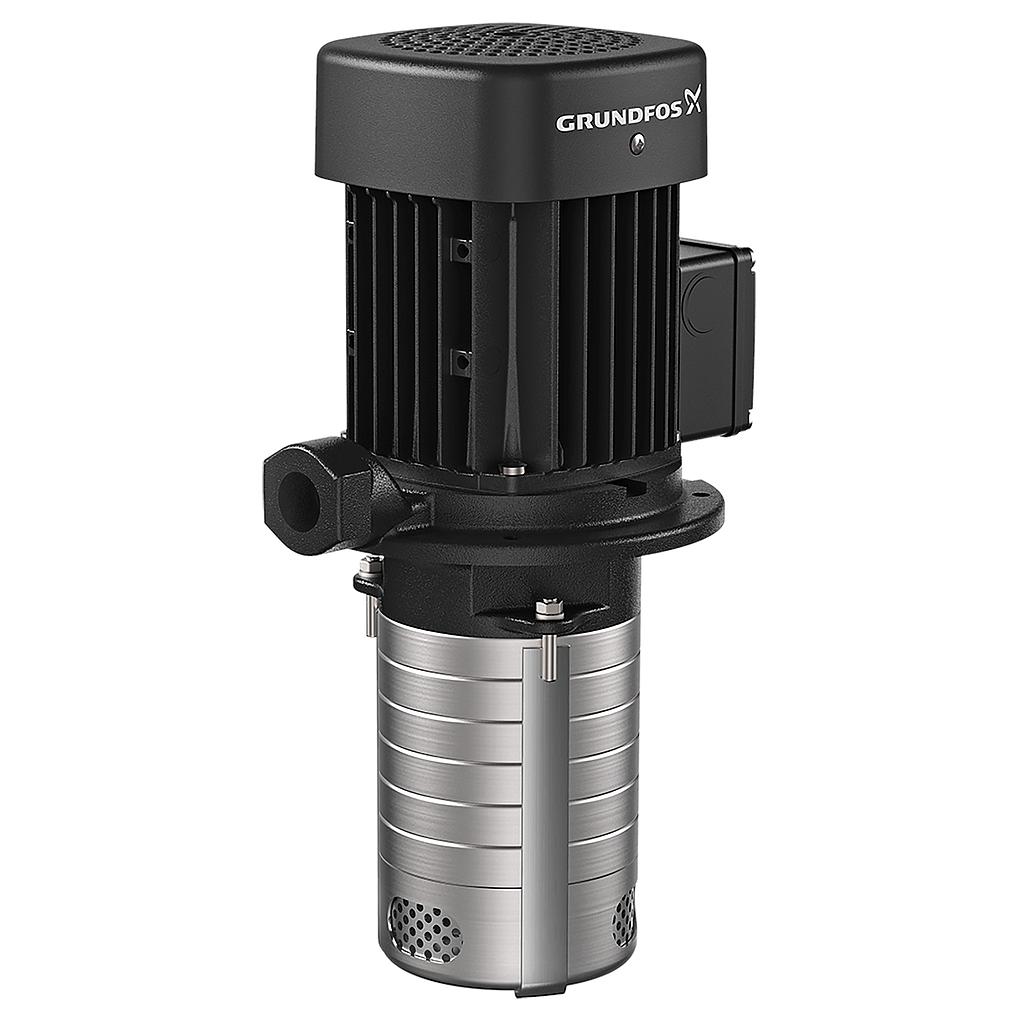

MTH 8-5/2 A-W-A-AQQV
Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc.
Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc.
The pump has the following characteristics:
|
The pump is close-coupled with a 3-phase motor.
| Links to notes in other regional sites (our database) | {"n@grundfos@global@66221":true} | |
| Product information | EAN number | 5712603046822 |
| Product No | 98891555 | |
| Flow rate | Approvals | CE,EAC,UKCA |
| Chambers | 5 | |
| Code Ausführung | A | |
| Code for shaft seal | AQQV | |
| Curve tolerance | ISO9906:2012 3B | |
| Energy approvals for motor | CE,CC, | |
| Impellers | 2 | |
| Model | B | |
| Number of reduced-diameter impellers | 0 | |
| Primary shaft seal | AQQV | |
| Pump version | A | |
| Rated flow | 133 l/min | |
| Rated head | 15.8 m | |
| Electrical data | Efficiency at full load | 80.7 % |
| Enclosure class (IEC 34-5) | IP54 | |
| Ex-protection standard | NONE | |
| Frame size | 80A | |
| IE efficiency class | IE3 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Maximum current consumption | 4/2.32 A | |
| Motor standard | IEC | |
| Multi plug | Y | |
| Rated current | 3.30/1.90 A | |
| Rated power - P2 | 0.75 kW | |
| Rated speed | 2855 1/min | |
| Rated voltage | 3 x 220-240D/380-415Y V | |
| Service factor | 1.30 | |
| Starting current | 580-620 % | |
| Suitable for 50/60 Hz (Yes/No) | N | |
| Installation | Code Anschl. Art | W |
| Connect code | W | |
| Immersion depth | 253 mm | |
| Max pressure at stated temp | 10 bar / 90 °C | |
| Maximum operating pressure | 10 bar | |
| PIPE_CONN_SIZE_OUTLET_INCH | 3/4 inch | |
| Range of ambient temperature | 60 °C | |
| Type of connection | Rp | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -10 .. 90 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | A |
| IMPELLER_MATR_QLTY_EN | EN 1.4301 | |
| IMPELLER_MATR_QUALITY_ASTM | AISI 304 | |
| Impeller | Stainless steel | |
| Material code | A | |
| PH_MATR_QUALITY_ASTM | ASTM A48-25B | |
| PH_MATR_QUALITY_EN | EN 1561 EN-GJL-200 | |
| Pump housing | Cast iron | |
| Control | Frequency converter | None |
| Other information | Environmental approvals | WEEE |
| Gross weight | 17.3 kg | |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.64 | |
| Net weight | 16.2 kg | |
| Terminal box position | 6 | |
| Zolltarif Nr. | 84137075 |
