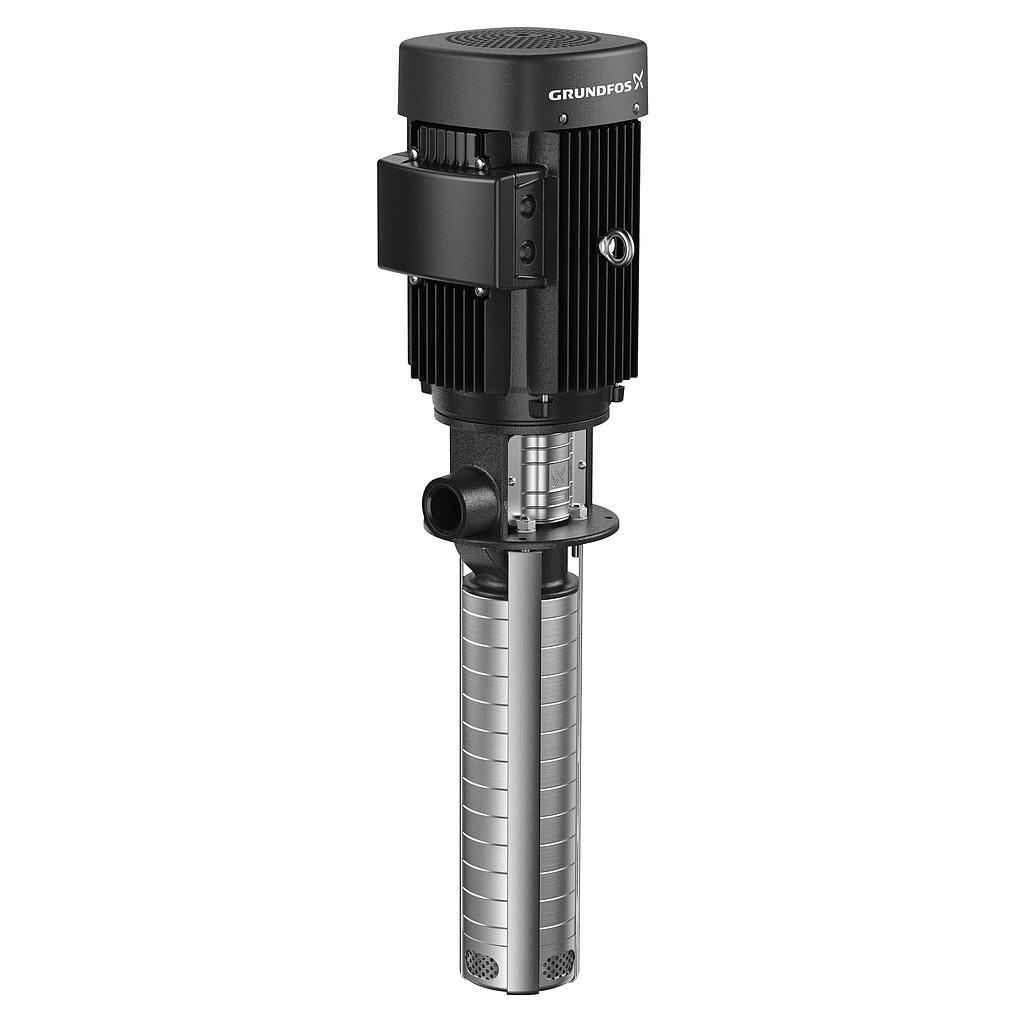

MTR 3-15/15 A-W-A-HUUV
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 98511272 MTR MTR 3-15/15 A-W-A-HUUV
Product code: 98511272
EAN Number: 5711496360411
MTR 3-15/15 A-W-A-HUUV
A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc.
The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump TEST has the following characteristics:
|
| Links to notes in other regional sites (our database) | {"n@grundfos@es@21725":true,"n@grundfos@fr@19854":true,"n@grundfos@global@89631":true} | |
| Product information | EAN number | 5711496360411 |
| Product No | 98511272 | |
| Flow rate | Approvals | CE,EAC,UKCA,RCM,Morocco |
| Approvals for motor | CE,EAC,UKCA,SEPRO,RCM,Morocco | |
| Chambers | 15 | |
| Code Ausführung | A | |
| Code for shaft seal | HUUV | |
| Curve tolerance | ISO9906:2012 3B | |
| Drainage back to tank (Yes/No) | N | |
| Energy approvals for motor | CE,CC,Singapore,Aust./N.Z. | |
| Impellers | 15 | |
| Model | A | |
| Number of reduced-diameter impellers | 0 | |
| Primary shaft seal | HUUV | |
| Pump orientation | Vertical | |
| Pump speed on which pump data are based | 2853 1/min | |
| Pump version | A | |
| Rated flow | 50 l/min | |
| Rated head | 69.7 m | |
| Electrical data | Built-in motor protection | NONE |
| Cos phi - power factor | 0.83-0.76 | |
| Enclosure class (IEC 34-5) | 55 Dust/Jetting | |
| IE Efficiency class | IE3 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Motor No | 85U05105 | |
| Motor efficiency at 1/2 load | 85.4-82.8 % | |
| Motor efficiency at 3/4 load | 84.6-84.0 % | |
| Motor efficiency at full load | 82.7 % | |
| Motor standard | IEC | |
| Motor type | 80C | |
| Number of poles | 2 | |
| Rated current | 4.35/2.50 A | |
| Rated power - P2 | 1.1 kW | |
| Rated speed | 2840-2870 1/min | |
| Rated voltage | 3 x 220-240D/380-415Y V | |
| Starting current | 450-500 % | |
| Suitable for 50/60 Hz (Yes/No) | N | |
| Installation | Code Anschl. Art | W |
| Connect code | W | |
| Flange size for motor | FT100 | |
| Immersion depth | 394 mm | |
| Max pressure at stated temp | 25 bar / 90 °C | |
| Maximum ambient temperature | 60 °C | |
| Maximum operating pressure | 25 bar | |
| PIPE_CONN_SIZE_OUTLET_INCH | 1 1/4 inch | |
| Type of connection | G internal thread | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -10 .. 90 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | A |
| IMPELLER_MATR_QLTY_EN | EN 1.4301 | |
| IMPELLER_MATR_QUALITY_ASTM | AISI 304 | |
| Impeller | Stainless steel | |
| Material code | A | |
| PUMP_HEAD_MATR_QLTY_ASTM | ASTM A48-25B | |
| PUMP_HEAD_MATR_QLTY_EN | EN 1561 EN-GJL-200 | |
| Pump head | Cast iron | |
| Control | Frequency converter | None |
| Safe Torque Off | N | |
| Other information | Danish VVS No. | 386963015 |
| Environmental approvals | WEEE | |
| Gross weight | 20.6 kg | |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.70 | |
| Net weight | 17 kg | |
| Shipping volume | 0.103 m³ | |
| Terminal box position | 6 | |
| Zolltarif Nr. | 84137075 |
