NBE 80-160/177 AIAF2AESBQQERW1
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.

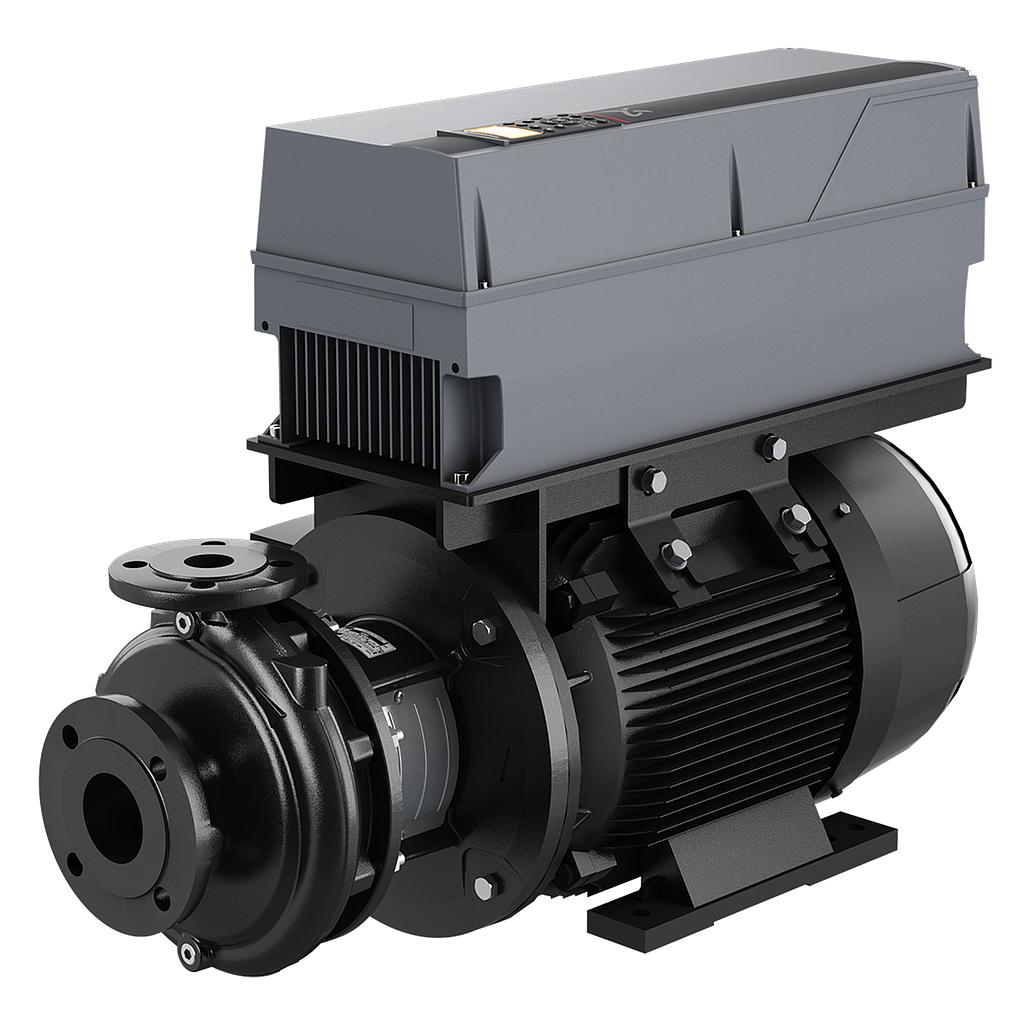

Grundfos 92930190 Endsuction close coupled single stage NBE 80-160/177 AIAF2AESBQQERW1
Product code: 92930190
EAN Number: 5715121720014
Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 16 with dimensions according to EN 1092-2. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The pump is close-coupled to a fan-cooled asynchronous motor.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@21819":true,"n@grundfos@fr@19168":true,"n@grundfos@global@125133":true} | |
| Product information | EAN number | 5715121720014 |
| Product No | 92930190 | |
| Flow rate | Actual impeller diameter | 177 mm |
| Bearing design | Standard | |
| Code Ausführung | A | |
| Code for shaft seal | BQQE | |
| Curve tolerance | ISO9906:2012 3B | |
| Nominal impeller diameter | 160 | |
| Primary shaft seal | BQQE | |
| Pump speed on which pump data are based | 2955 1/min | |
| Pump version | A | |
| Rated flow | 213 m³/h | |
| Rated head | 32.71 m | |
| Shaft diameter | 24 mm | |
| Shaft seal arrangement | Single | |
| Electrical data | Bearing insulation type N-end | COATED RING |
| Built-in motor protection | PTC | |
| Cos phi - power factor | 0.85 | |
| Enclosure class (IEC 34-5) | IP55 | |
| IE Efficiency class | IE4 | |
| IE efficiency | IE4 94,5% | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Motor No | 92779349 | |
| Motor efficiency at 1/2 load | 94.4 % | |
| Motor efficiency at 3/4 load | 94.8 % | |
| Motor efficiency at full load | 94.5 % | |
| Mount. design. acc. IEC 34-7 | IM B35 | |
| Number of poles | 2 | |
| Rated current | 54/31.5 A | |
| Rated power - P2 | 30 kW | |
| Rated speed | 2955 1/min | |
| Rated voltage | 3 x 380-420D/660-725Y V | |
| Starting current | 790 % | |
| Installation | Bearing lubrication | Grease |
| Code Anschl. Art | F2 | |
| Connect code | F2 | |
| Maximum operating pressure | 16 bar | |
| Pipe connection standard | EN 1092-2 | |
| Pressure rating for connection | PN 16 | |
| Pump housing with feet (Yes/No) | N | |
| Range of ambient temperature | -10 .. 50 °C | |
| Size of inlet connection | DN 100 | |
| Size of outlet connection | DN 80 | |
| Support block (Yes/No) | N | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -25 .. 120 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | A |
| Code for rubber | E | |
| Elastomere GLRD | E | |
| IMPELLER_MATR_QLTY_EN | EN-GJL-200 | |
| IMPELLER_MATR_QUALITY_ASTM | ASTM class 30 | |
| Impeller | Cast iron | |
| Internal pump house coating | CED | |
| Material code | A | |
| PH_MATR_QUALITY_ASTM | ASTM class 35 | |
| PH_MATR_QUALITY_EN | EN-GJL-250 | |
| PUMP_SHAFT_MATR_QLTY_ASTM | AISI 304 | |
| Pump housing | Cast iron | |
| Shaft | EN 1.4301 | |
| Shaft | Stainless steel | |
| WEAR_RING_MATR_QLTY_EN | CuZn34Mn3AI2Fe1-C | |
| Wear ring | Brass | |
| Control | Appr. for VFD | CE, CULUS, C-TICK |
| Frequency converter | Built-in | |
| Pressure sensor | N | |
| Type of frequency converter | CUE 3X380-500V IP55 RUG 30KW | |
| VFD product number | 99616823 | |
| Other information | Gross weight | 414 kg |
| Herkunftsland | ||
| Language on pump nameplate | GB | |
| Minimum efficiency index, MEI ≥ | 0.70 | |
| Net weight | 333 kg | |
| Shipping volume | 1.6 m³ | |
| Zolltarif Nr. | 84137051 |
