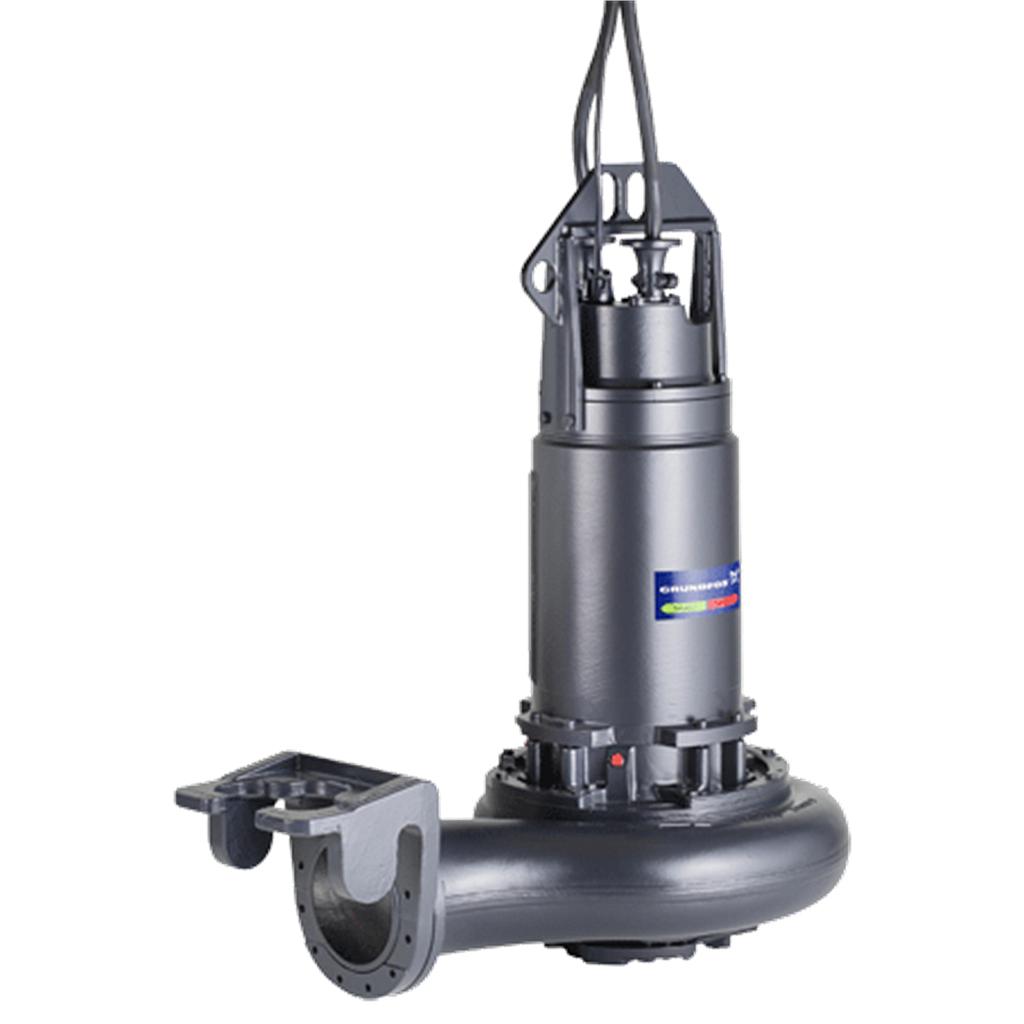

S2.105.250.650.8.70H.C.538.G.N.D.513GPA
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 99442966 Range 70 => 155 kW S2.105.250.650.8.70H.C.538.G.N.D.513GPA
Product code: 99442966
EAN Number: 5713829208377
The pump is designed for intermittent and continous operation. The cooling jacket ensures that the pump can operate submerged or dry installed without motor cooling. The two-channel impeller handles solids up to 105 mm in size. A SmartTrim impeller clearance adjustment system makes it possible to maintain maximum performance throughout the lifetime of the pump. To facilitate easy transportation as well as installation on-site, the pump is fitted with a robust lifting bracket. For installation on auto coupling, the Grundfos SmartSeal gasket system provides a leak-proof connection. Pipework connections are via a DIN flange.
| Links to notes in other regional sites (our database) | {"n@grundfos@global@117910":true} | |
| Product information | EAN number | 5713829208377 |
| Product No | 99442966 | |
| Flow rate | Actual impeller diameter | 538 mm |
| Approvals on nameplate | CE, EAC | |
| Cooling jacket (Yes/No) | Y | |
| Curve tolerance | ISO9906:2012 3B | |
| Lifting height class | H | |
| Max. Particle | 105 mm | |
| Maximum flow | 404 l/s | |
| Maximum head | 25.9 m | |
| Type of impeller | 2-CHANNEL | |
| Electrical data | Cable description | 2X4X25MM2+1X7X1,5MM2 |
| Cable resistance | 0.78 mOhm/m | |
| Cos phi 1/1 | 0.84 | |
| Cos phi 1/2 | 0.70 | |
| Cos phi 3/4 | 0.80 | |
| Enclosure class (IEC 34-5) | IP68 | |
| Ex-protection standard | THERM | |
| Explosion proof | N | |
| Frame size | 70 | |
| Insulation class (IEC 85) | F | |
| Length of power cable | 15 m | |
| Mains frequency | 50 Hz | |
| Max starts per hour | 15 | |
| Maximum current consumption | 116 A | |
| Method of start | Y/D | |
| Motor efficiency at 1/2 load | 94 % | |
| Motor efficiency at 3/4 load | 94 % | |
| Motor efficiency at full load | 93 % | |
| Number of poles | 8 | |
| Power cable type | H07RN-F AT | |
| Power input P1 | 70 kW | |
| Rated current | 116/ A | |
| Rated current at no load | 45.4 A | |
| Rated power - P2 | 65 kW | |
| Rated speed | 732 1/min | |
| Rated voltage | 3 x 415 V | |
| Starting current | 706 A | |
| Voltage tolerance | +10/-10 % | |
| Winding resistance | 0.136 Ohm | |
| Installation | Auto coupling | 96782483 |
| Inst dry/wet | D/S | |
| Maximum installation depth | 20 m | |
| Pressure rating for connection | PN 10 | |
| Range of ambient temperature | 0 .. 40 °C | |
| Size of outlet connection | DN 250 | |
| Type of connection | DIN | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | 0 .. 40 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | IMPELLER_MATR_QLTY_EN | EN 1563 EN-GJS-500-7 |
| IMPELLER_MATR_QUALITY_ASTM | ASTM A536 80-55-06 | |
| Impeller | Ductile iron | |
| MOTOR_MATR_QUALITY_ASTM | A48 30 | |
| MOTOR_MATR_QUALITY_EN | EN 1561 EN-GJL-250 | |
| Motor | Cast iron | |
| PH_MATR_QUALITY_ASTM | ASTM A536 80-55-06 | |
| PH_MATR_QUALITY_EN | EN 1563 EN-GJS-500-7 | |
| Pump housing | Ductile cast iron | |
| Secondary shaft seal | SIC-CARBON | |
| Shaft seal | SIC | |
| Control | Moisture sensor | with moisture sensors |
| Water-in-oil sensor | without water-in-oil sensor | |
| Other information | Gross weight | 1660 kg |
| Herkunftsland | ||
| Net weight | 1490 kg | |
| Sales region | GPA | |
| Zolltarif Nr. | 84137021 |
