SLV.100.100.55.4.51D.C
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.

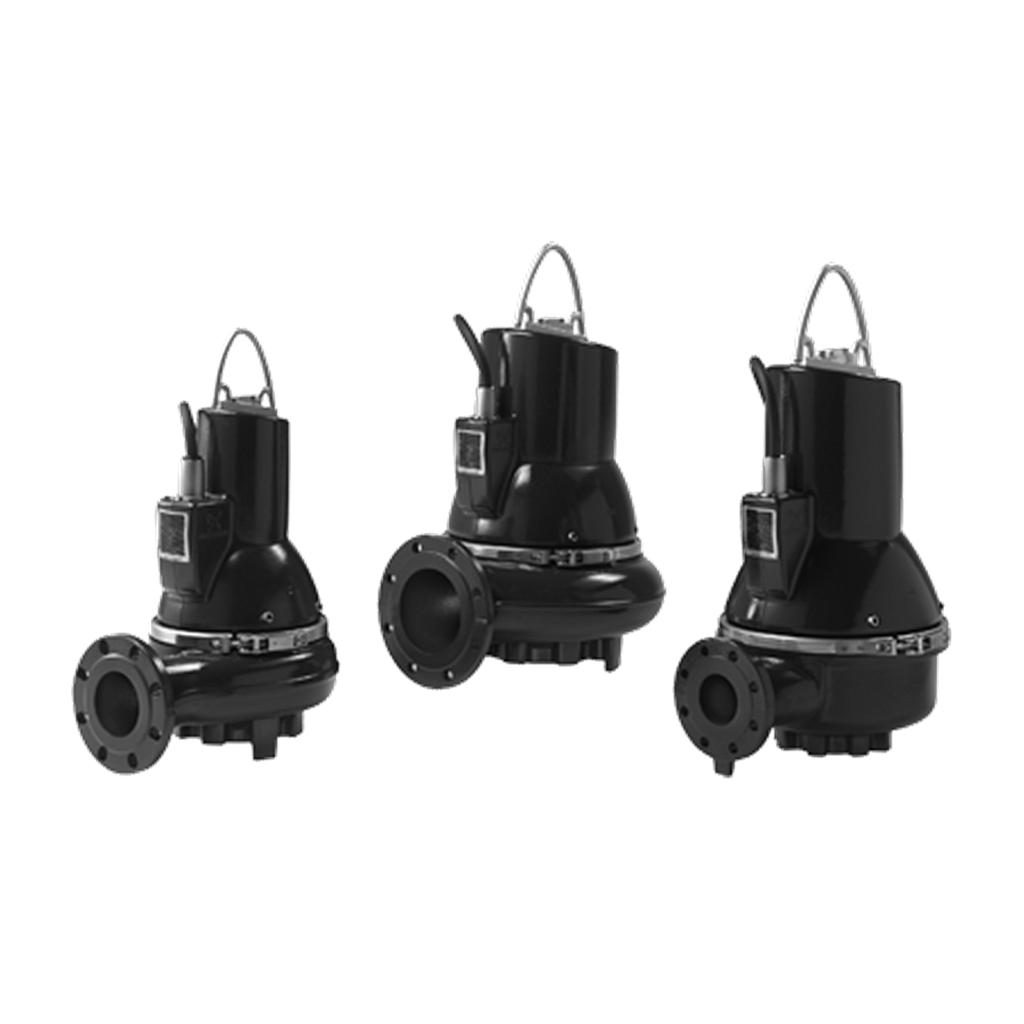

Grundfos 98626031 SLV SLV.100.100.55.4.51D.C
Product code: 98626031
EAN Number: 5711498464919
Non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The pump is designed for intermittent and continous operations in submerged installation. The efficient SuperVortex impeller provides passage of long fibres and solids up to 100 mm and is suitable for wastewater with a dry matter content of up to 5 %. A unique stainless-steel clamp assembling system enables quick and easy disassembly of the pump from the motor unit for service and inspection. No special tools are required.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@32932":true,"n@grundfos@fr@40300":true,"n@grundfos@global@163637":true} | |
| Product information | EAN number | 5711498464919 |
| Product No | 98626031 | |
| Flow rate | Approvals | CE EN12050-1 |
| Cooling jacket (Yes/No) | N | |
| Curve tolerance | ISO9906:2012 3B2 | |
| Max. Particle | 100 mm | |
| Maximum flow | 36.1 l/s | |
| Maximum head | 17.2 m | |
| Primary shaft seal | SIC/SIC | |
| Rated flow | 20.5 l/s | |
| Rated head | 11.48 m | |
| Type of impeller | SUPER VORTEX | |
| Electrical data | Cos phi - p.f. at 1/2 load | 0.70 |
| Cos phi - p.f. at 3/4 load | 0.80 | |
| Cos phi - power factor | 0.85 | |
| Enclosure class (IEC 34-5) | IP68 | |
| Ex-protection standard | THERMAL SWITCH | |
| Explosion proof | N | |
| Insulation class (IEC 85) | H | |
| Length of power cable | 10 m | |
| Mains frequency | 50 Hz | |
| Max starts per hour | 20 | |
| Method of start | SD | |
| Motor efficiency at 1/2 load | 89.0 % | |
| Motor efficiency at 3/4 load | 89.6 % | |
| Motor efficiency at full load | 89.1 % | |
| Number of poles | 4 | |
| Power cable type | LYNIFLEX | |
| Power input P1 | 6.3 kW | |
| Power plug | No plug | |
| Rated current | 10.9 A | |
| Rated power - P2 | 5.5 kW | |
| Rated speed | 1463 1/min | |
| Rated voltage | 3 x 380-415 V | |
| Starting current | 81 A | |
| Voltage tolerance | +10/-10 % | |
| Installation | Auto coupling | 96090994 |
| Frame range | C | |
| Inst dry/wet | SUBMERGED | |
| Maximum installation depth | 7 m | |
| Maximum operating pressure | 6 bar | |
| Pressure rating for connection | PN 10 | |
| Range of ambient temperature | 0 .. 40 °C | |
| Size of inlet connection | DN 100 | |
| Size of outlet connection | DN 100 | |
| Type of inlet connection | DIN | |
| Type of outlet connection | DIN | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | 0 .. 40 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | IMPELLER_MATR_QLTY_EN | EN 5.1301 EN-GJL-250 |
| Impeller | Cast iron | |
| MATWNRMOT | EN-GJL-250 | |
| PH_MATR_QUALITY_EN | EN 5.1301 EN-GJL-250 | |
| Pump housing | Cast iron | |
| Control | Control box | not included |
| Moisture sensor | with moisture sensors | |
| Water-in-oil sensor | without water-in-oil sensor | |
| Other information | Danish VVS No. | 391299346 |
| Gross weight | 158 kg | |
| Herkunftsland | ||
| Net weight | 139 kg | |
| Zolltarif Nr. | 84137021 |
