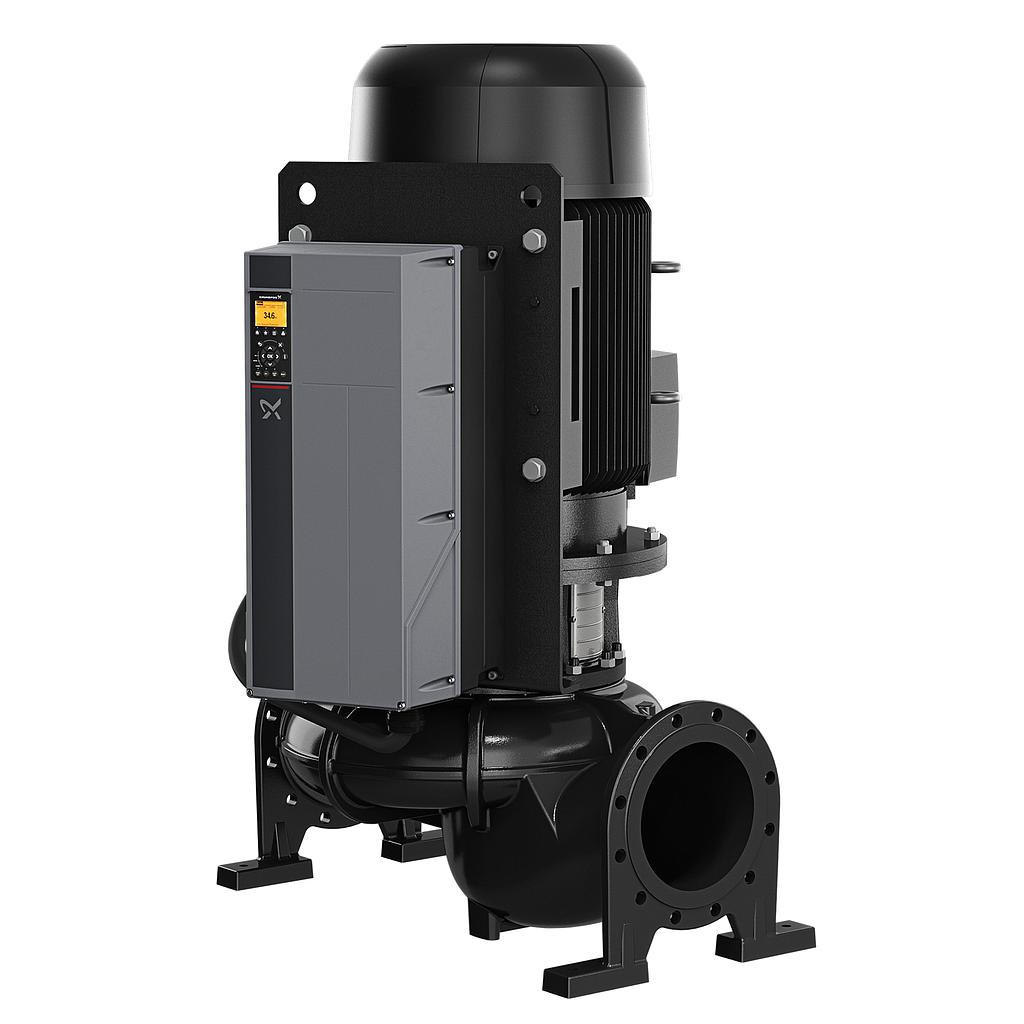

TPE 300-220/4 NC-A3-F-Y-DQQE-SW3
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 92843690 Grundfos TP pumps are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as heating/cooling/district energy. The pumps are fitted with fixed speed motors. TPE 300-220/4 NC-A3-F-Y-DQQE-SW3
Product code: 92843690
EAN Number: 5715120405011
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with a balanced O-ring seal. The shaft seal is according to EN 12756. Pipework connection is via PN 25 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@9885":true,"n@grundfos@fr@13245":true,"n@grundfos@global@114819":true} | |
| Product information | EAN number | 5715120405011 |
| Product No | 92843690 | |
| Flow rate | Actual impeller diameter | 272 mm |
| Code Ausführung | A3 | |
| Code for shaft seal | DQQE | |
| Curve tolerance | ISO9906:2012 3B | |
| Maximum head | 220 dm | |
| Primary shaft seal | DQQE | |
| Pump speed on which pump data are based | 1482 1/min | |
| Pump version | A3 | |
| Rated flow | 736.9 m³/h | |
| Rated head | 15.75 m | |
| Electrical data | Built-in motor protection | PTC/PT1 |
| Cos phi - power factor | 0.95 | |
| Enclosure class (IEC 34-5) | IP55 | |
| IE Efficiency class | IE5 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 Hz | |
| Motor No | 92669132 | |
| Motor efficiency at full load | 94.7 % | |
| Motor type | 225S | |
| Number of poles | 4 | |
| Rated current | 70 A | |
| Rated power - P2 | 37 kW | |
| Rated speed | 150-1500 1/min | |
| Rated voltage | 3 x 400 V | |
| Installation | Code Anschl. Art | F |
| Connect code | F | |
| Flange size for motor | FF400 | |
| Max pressure at stated temp | 25 bar / 140 °C | |
| Maximum ambient temperature | -10 .. 50 °C | |
| Maximum operating pressure | 25 bar | |
| Pipe connection standard | EN 1092-2 | |
| Port-to-port length | 1240 mm | |
| Pressure rating for connection | PN 25 | |
| Size of connection | DN 300 | |
| Type of connection | DIN | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -40 .. 140 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | Y |
| IMPELLER_MATR_QLTY_EN | CuSn10-C | |
| Impeller | Bronze | |
| Material code | Y | |
| PH_MATR_QUALITY_ASTM | ASTM Grade 60-40-18 | |
| PH_MATR_QUALITY_EN | EN-GJS-400-18-LT | |
| Pump housing | Ductile iron | |
| Control | Appr. for VFD | CE, CULUS, C-TICK |
| Frequency converter | Built-in | |
| Type of frequency converter | CUE 3X380-500V IP55 RUG 37KW | |
| VFD product number | 99616824 | |
| Other information | Config. file no | 92843877 |
| Gross weight | 944 kg | |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.70 | |
| Net weight | 818 kg | |
| Shipping volume | 3.62 m³ | |
| Zolltarif Nr. | 84137051 |
