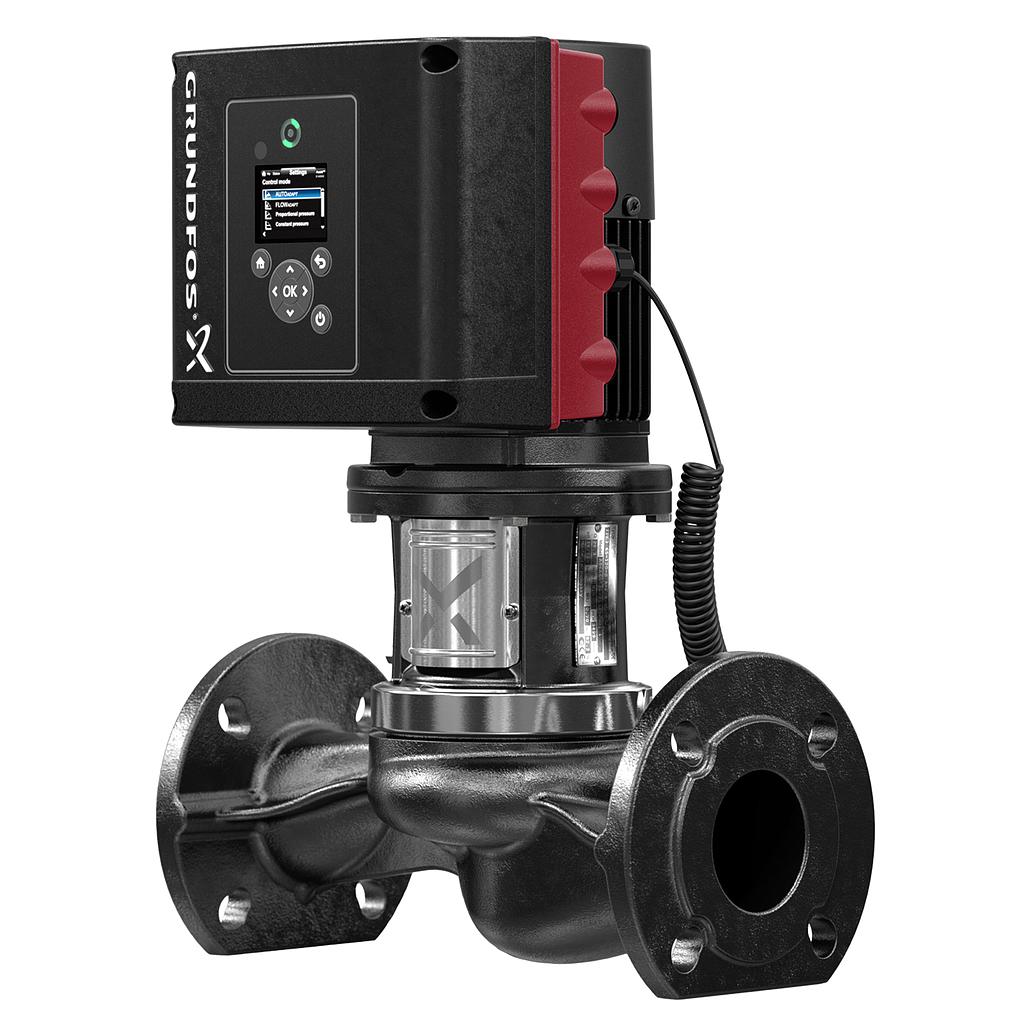

TPE3 100-40 S-AI-F-A-BQQE-CYA
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 99272230 Grundfos TP pumps are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as heating/cooling/district energy. The pumps are fitted with fixed speed motors. TPE3 100-40 S-AI-F-A-BQQE-CYA
Product code: 99272230
EAN Number: 5713826360511
Single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The shaft seal is according to EN 12756. Pipework connection is via PN 6 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled, permanent-magnet synchronous motor. The pump is fitted with a fan-cooled asynchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The pump is fitted with temperature- and differential pressure sensors.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@23585":true,"n@grundfos@fr@17174":true,"n@grundfos@global@71151":true} | |
| Product information | EAN number | 5713826360511 |
| Product No | 99272230 | |
| Flow rate | Actual impeller diameter | 90 mm |
| Code Ausführung | AI | |
| Code for shaft seal | BQQE | |
| Curve tolerance | ISO9906:2012 3B2 | |
| Maximum head | 40 dm | |
| Primary shaft seal | BQQE | |
| Pump speed on which pump data are based | 1860 1/min | |
| Pump version | AI | |
| Rated flow | 24.4 m³/h | |
| Rated head | 3 m | |
| Electrical data | Built-in motor protection | ELEC |
| Cos phi - power factor | 0.58-0.52 | |
| Enclosure class (IEC 34-5) | IP55 | |
| IE Efficiency class | IE5 | |
| Insulation class (IEC 85) | F | |
| Mains frequency | 50 / 60 Hz | |
| Motor No | 99137980 | |
| Motor efficiency at full load | 84.5 % | |
| Motor type | 71A | |
| Number of poles | 0 | |
| Rated current | 0.85-0.7 A | |
| Rated power - P2 | 0.25 kW | |
| Rated speed | 180-2000 1/min | |
| Rated voltage | 3 x 380-500 V | |
| Installation | Code Anschl. Art | F |
| Connect code | F | |
| Flange size for motor | 56C | |
| Max pressure at stated temp | 6 bar / 120 °C | |
| Maximum ambient temperature | -20 .. 50 °C | |
| Maximum operating pressure | 6 bar | |
| Pipe connection standard | EN 1092-2 | |
| Port-to-port length | 450 mm | |
| Pressure rating for connection | PN 6 | |
| Size of connection | DN 100 | |
| Type of connection | DIN | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | -25 .. 120 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | Code Material | A |
| IMPELLER_MATR_QLTY_OTHER | PES+30% GF | |
| Impeller | Composite | |
| Material code | A | |
| PH_MATR_QUALITY_ASTM | ASTM class 35 | |
| PH_MATR_QUALITY_EN | EN-GJL-250 | |
| Pump housing | Cast iron | |
| Control | Control panel | HMI300 - Graphical |
| Frequency converter | Built-in | |
| Function Module | FM300 - Advanced | |
| Other information | Config. file no | 98484793 |
| Finnish LVI No. | 4616274 | |
| Gross weight | 48 kg | |
| Herkunftsland | ||
| Minimum efficiency index, MEI ≥ | 0.70 | |
| Net weight | 39.2 kg | |
| Shipping volume | 0.164 m³ | |
| Swedish RSK No. | 5745860 | |
| Zolltarif Nr. | 84137051 |
