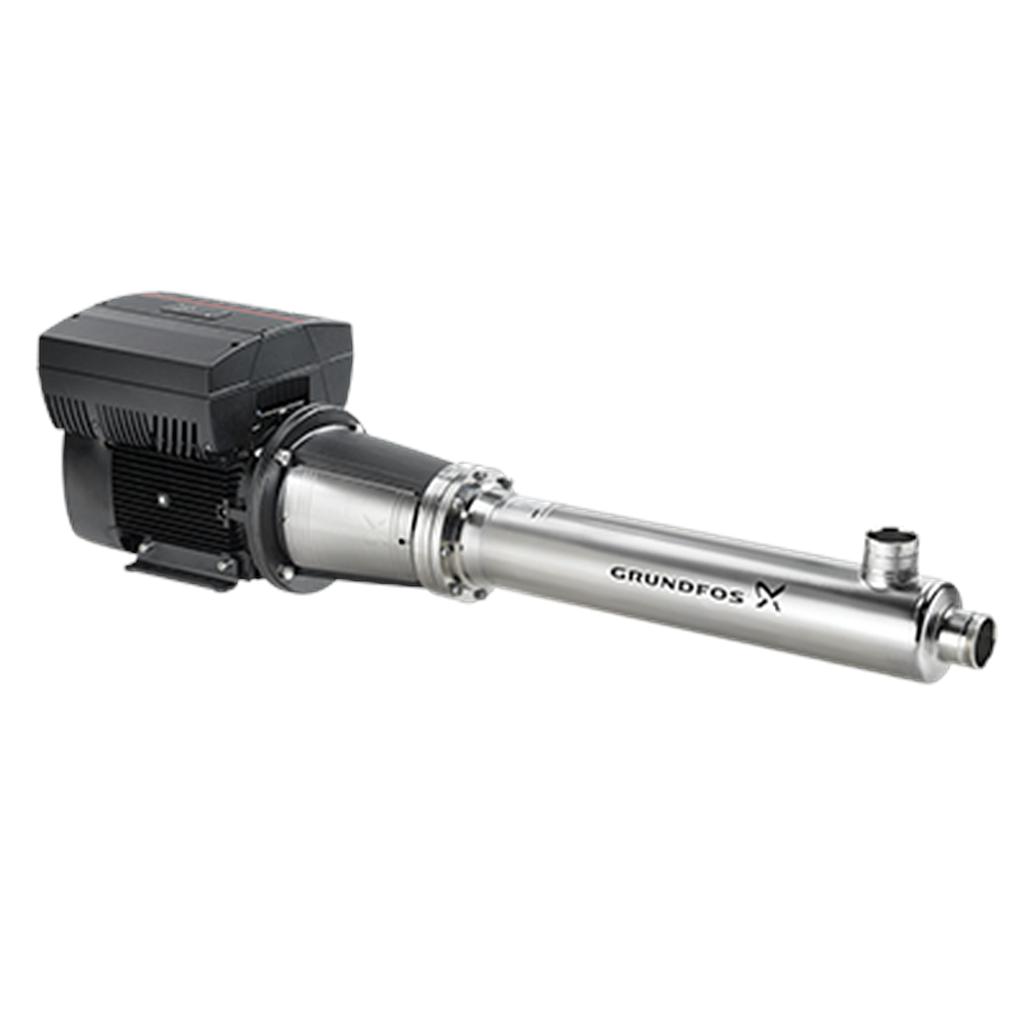

BMS 95-3 HP-C-C-P-A-A
En la tienda profluid simplemente comprar barato en línea - para los pedidos más grandes o descuentos de escala por favor póngase en contacto con nosotros para una oferta individual.
Esta oferta es exclusiva para profesionales.
Grundfos 98494521 Horizontale mehrstufige Pumpen BMS 95-3 HP-C-C-P-A-A
Product code: 98494521
EAN Number: 5711496101977
Die Hochdruckmodule BMS hp sind bestimmt für den Einsatz in
|
Das Grundfos Druckmodul BMS hp ist für Industrie- und Wasserversorgungsanwendungen mit hohem Zulaufdruck bis 82,7 (1200 psi) bestimmt. Sie werden zur Erhöhung des Anlagendrucks auf bis zu 82,7 bar (1200 psi) eingesetzt.
Die BMS hp Hochdruckmodule sind die optimale Lösung für Anwendungen mit folgenden Anforderungen:
|
Für die Hochdruckmodule BMS hp werden modifizierte Standard-Unterwasserpumpen verwendet, die zentriert in einem Edelstahlmantel (Duplex) eingebaut werden.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@31212":true,"n@grundfos@fr@22356":true,"n@grundfos@global@173611":true} | |
| Produkt Informationen | EAN-Nummer | 5711496101977 |
| Produktnummer | 98494521 | |
| Förderleistung | Zulassungen | CE, TR |
| Code Ausführung | HP | |
| ISO Abnahmekl. | ISO9906:2012 3B | |
| Code Model | A | |
| Pumpenausführung | HP | |
| Nennförderstrom | 95 m³/h | |
| Nennförderstrom | 113 m³/h | |
| Nennförderhöhe | 56 m | |
| Stufen | 3 | |
| Elektrische Daten | Schutzart (gemäß IEC 34-5) | IP55 |
| Baugröße | 180MC | |
| IE Effizienzklasse 50Hz | IE3 | |
| Netzfrequenz | 50 Hz | |
| Motorwirkungsgrad bei Vollast | 92.7 % | |
| Bauart des Motors | MGE | |
| Motorpole | 2 | |
| Bemessungsstrom | 39.2-31.5 A | |
| Bemessungsleistung – P2 | 22 kW | |
| Nenn-Drehzahl | 3540 1/min | |
| Bemessungsspannung | 3 x 380-480 V | |
| Installation | Grösse Motorflansch | FF 300 |
| Maximaler Betriebsdruck | 82.7 bar | |
| Maximal zulässiger Druck Saugseite | 80 bar | |
| Mindest Einlass-Druck | 1 bar | |
| Nennweite | 6"/D168,3 | |
| Umgebungstemperatur | 40 °C | |
| Fördermedium | Dichte | 998.2 kg/m³ |
| Medientemperaturbereich | 0 .. 40 °C | |
| Medientemp. bei Datenerfassung | 20 °C | |
| Werkstoffe | Code Material | C |
| Laufrad | EN 1.4539 | |
| Laufradwerkstoff gemäß ASTM | AISI 904L | |
| Laufradwerkstoff | Edelstahl | |
| Typenschlüssel für Material | C | |
| Motor | Aluminium | |
| PUMP_MATR_QUALITY_ASTM | AISI 904L | |
| Pumpe | EN 1.4539 | |
| Pumpe | Stainless steel | |
| SLEEVE_MATR_QLTY_ASTM | AISI 318 LN | |
| Sleeve | EN 1.4462/1.4410 | |
| GLRD | Siliziumkarbid/synthetische Kohle | |
| Hülsenwerkstoff | Super Duplex/Duplex steel | |
| Sonstiges Information | Bruttogewicht | 402 kg |
| Herkunftsland | DK | |
| Mindesteffizienzindex MEI ≥ | 0.5 | |
| Nettogewicht | 302 kg | |
| Versandvol. | 0.435 m³ | |
| Zolltarif Nr. | 84137029 |
