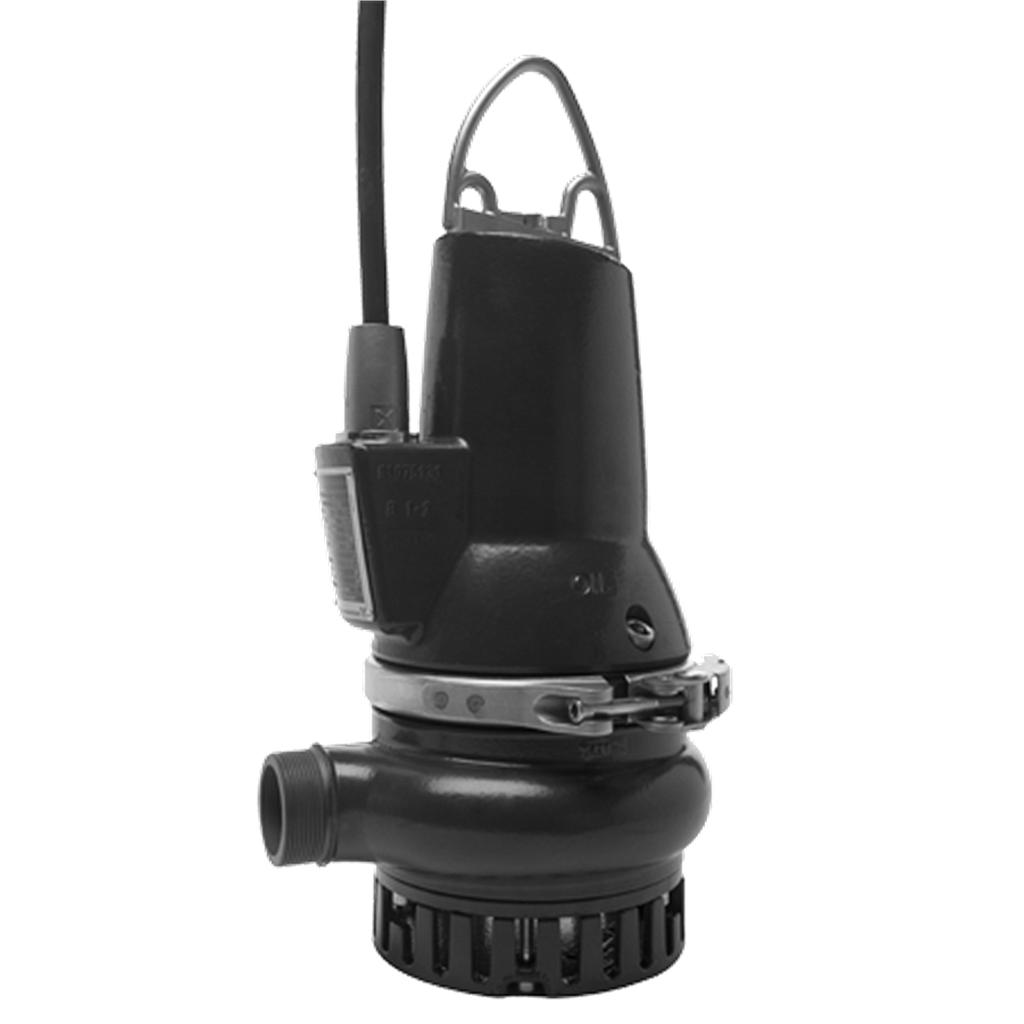

Grundfos 96104200 DP DP10.50 .09.2.1.502
Product code: 96104200
EAN Number: 5700396852621
GRUNDFOS DP pump is a portable pump for both domestic and industrial applications.
The pump has a multi-vane, semi-open impeller for 10 mm free passage and is suitable for pumping
|
The compact design makes the pump suitable for both temporary and permanent installation.
The pump is a cast iron submersible pump with integrated submersible 1-phase motor. Approvals: LGA
The pump has an intermediate oil chamber pre-filled with non-toxic special oil.
The pump is fitted with a cable plug for easy dismantling. This plug is hermetically sealed with polyurethane to prevent water from penetrating through the cable into the motor.
A clamp between pump housing and motor ensures easy and safe dismantling and assembly. Inspection can be done in the field without any special tools.
The pump is fitted with a double shaft seal in the unique cartridge design. This makes it easy to replace the shaft seal very quickly in the field without any special tools. It also eliminates the risk of faulty installation.
The motor is insulation class F and has long-life, deep-groove, greased-for-life ball bearings.
The pump has R 2 discharge port and is ready for installation either free-standing or on an auto-coupling system.
| Links to notes in other regional sites (our database) | {"n@grundfos@es@11128":true,"n@grundfos@fr@17162":true,"n@grundfos@global@105800":true} | |
| Product information | EAN number | 5700396852621 |
| Product No | 96104200 | |
| Flow rate | Approvals | LGA |
| Curve tolerance | ISO9906:2012 3B2 | |
| Max. Particle | 10 mm | |
| Max. hydraulic efficiency | 70 % | |
| Maximum flow | 11.9 l/s | |
| Maximum head | 13.8 m | |
| Primary shaft seal | SiC/SiC | |
| Rated flow | 5.7 l/s | |
| Rated head | 8.5 m | |
| Type of impeller | SEMI OPEN | |
| Electrical data | Breakdown torque | 7 Nm |
| Capacitor size - run | 30 µF | |
| Cos phi - p.f. at 1/2 load | 0.86 | |
| Cos phi - p.f. at 3/4 load | 0.92 | |
| Cos phi - p.f. at no load | 0.68 | |
| Cos phi - power factor | 0.96 | |
| Enclosure class (IEC 34-5) | IP68 | |
| Ex-protection standard | PTO | |
| Explosion proof | N | |
| Insulation class (IEC 85) | F | |
| Length of power cable | 10 m | |
| Locked-rotor torque | 6.5 Nm | |
| Mains frequency | 50 Hz | |
| Max starts per hour | 30 | |
| Moment of inertia | 0.0033 kg m² | |
| Motor efficiency at 1/2 load | 55 % | |
| Motor efficiency at 3/4 load | 63 % | |
| Motor efficiency at full load | 67 % | |
| Number of poles | 2 | |
| Power cable type | H07RN-F | |
| Power input P1 | 1.3 kW | |
| Power plug | No plug | |
| Rated current | 6.1 A | |
| Rated current at 1/2 load | 4.1 A | |
| Rated current at 3/4 load | 5.1 A | |
| Rated current at no load | 2.6 A | |
| Rated power - P2 | 0.9 kW | |
| Rated speed | 2870 1/min | |
| Rated voltage | 1 x 230 V | |
| Start. method | Direct-on-line (DOL) | |
| Starting current | 38 A | |
| Thermal protec | internal | |
| Voltage tolerance | +6/-10 % | |
| Installation | Auto coupling | 97644486 |
| Inst dry/wet | SUBMERGED | |
| Maximum installation depth | 7 m | |
| Maximum operating pressure | 6 bar | |
| Pressure rating for connection | PN 10 | |
| Pump outlet | R 2 | |
| Range of ambient temperature | 0 .. 40 °C | |
| Type of connection | NPT(M) | |
| Fluid | Density | 998.2 kg/m³ |
| Liquid temperature range | 0 .. 40 °C | |
| Selected liquid temperature | 20 °C | |
| Materials | IMPELLER_MATR_QLTY_EN | EN-GJS-500-7 |
| Impeller | Cast iron | |
| PH_MATR_QUALITY_EN | EN-GJL-250 | |
| Pump housing | Cast iron | |
| Control | AUTOADAPT | No |
| Additional I/O | External | |
| Control box | not included | |
| Moisture sensor | without moisture sensors | |
| Water-in-oil sensor | without water-in-oil sensor | |
| Other information | Danish VVS No. | 391290112 |
| Gross weight | 48.2 kg | |
| Herkunftsland | ||
| Net weight | 42.9 kg | |
| Swedish RSK No. | 5885766 | |
| Zolltarif Nr. | 84137021 |
